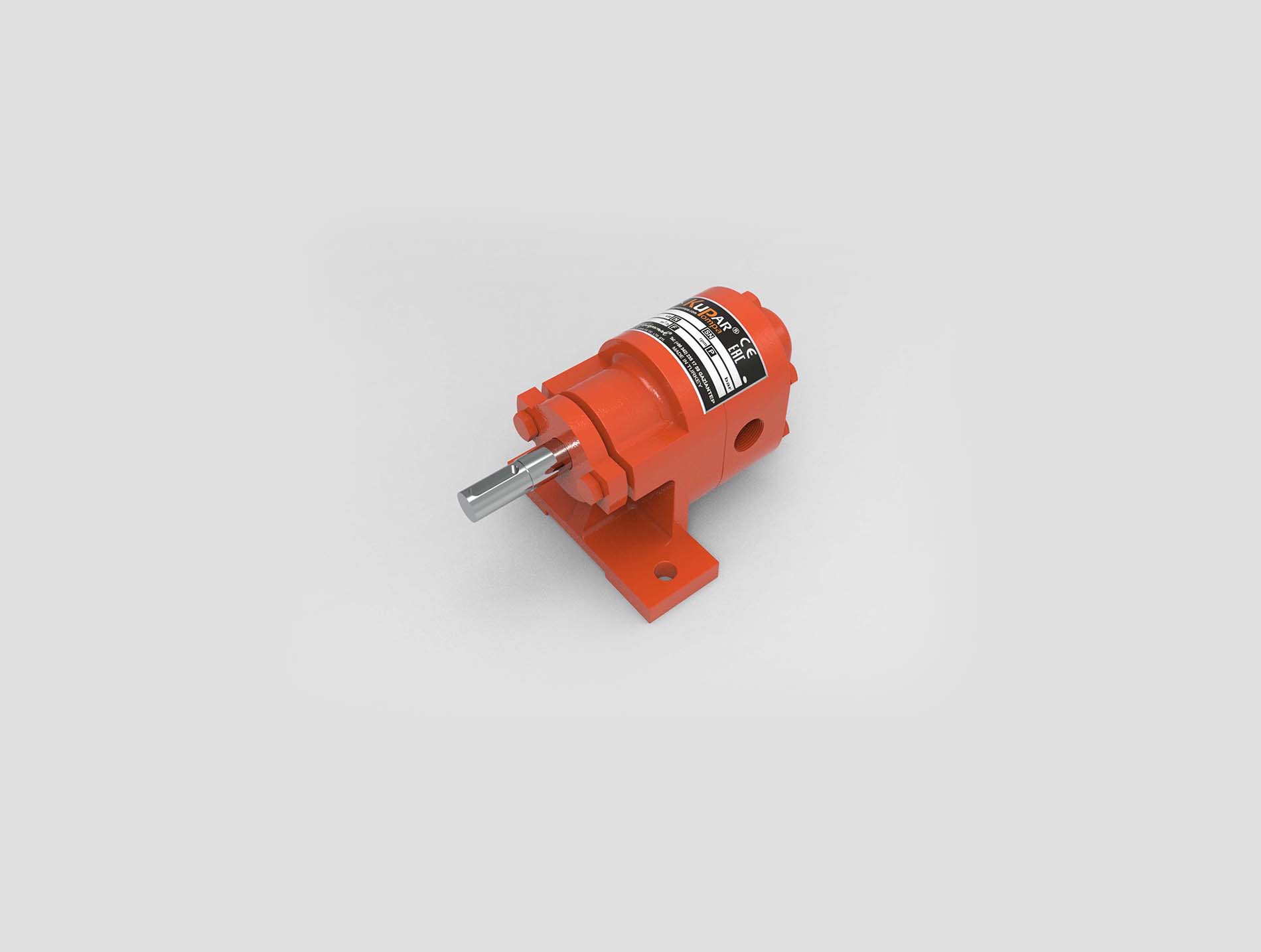

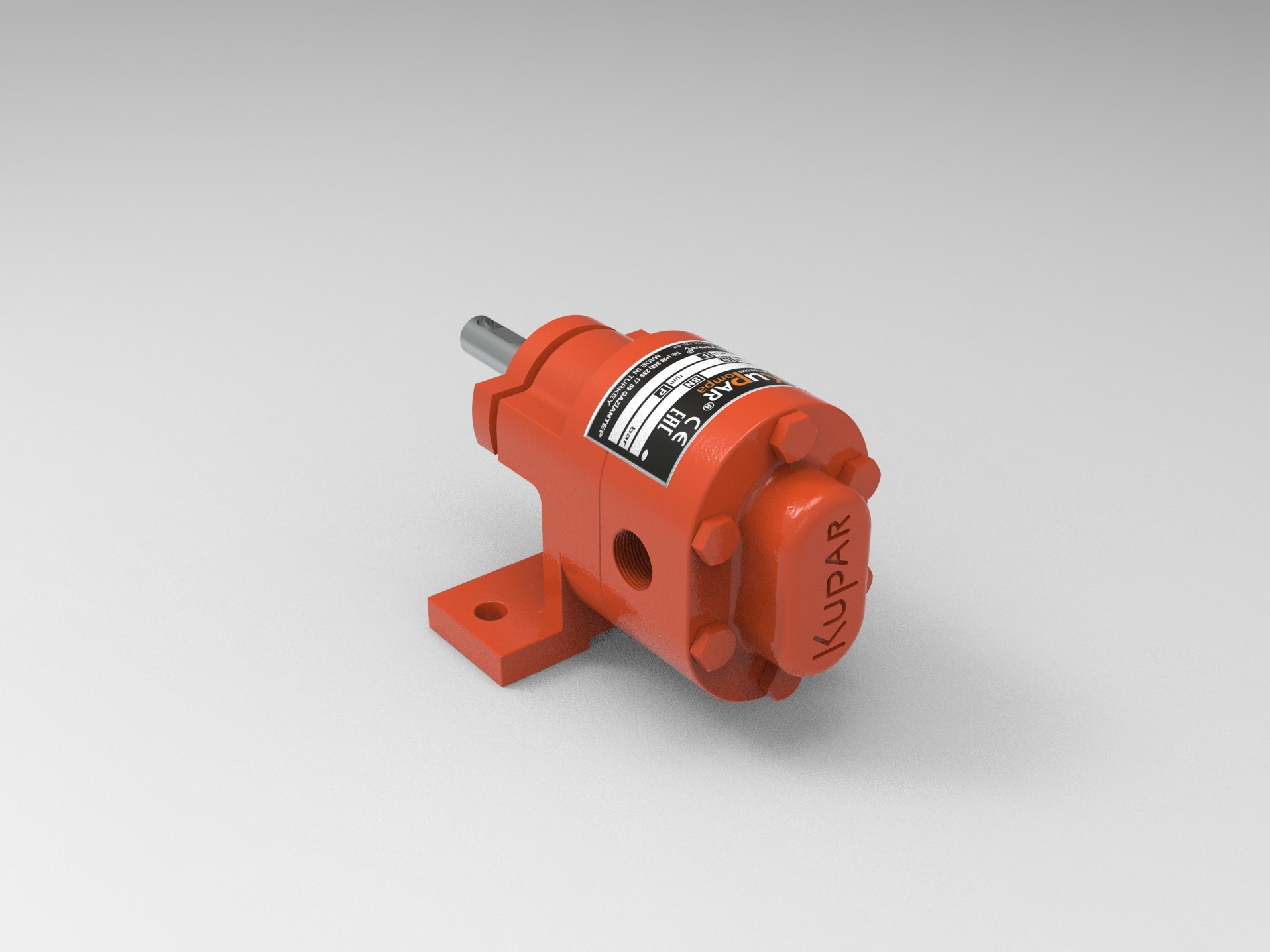

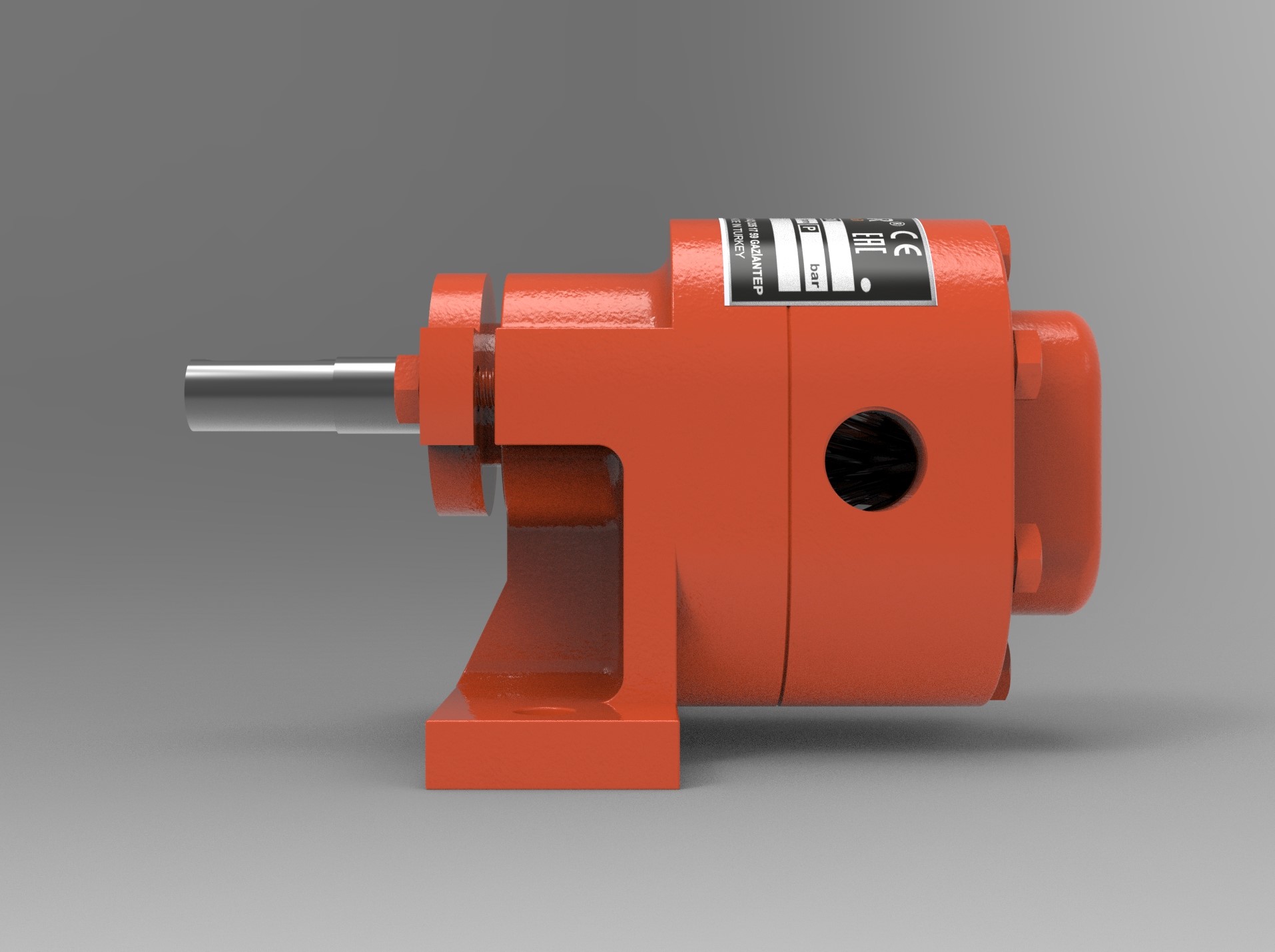

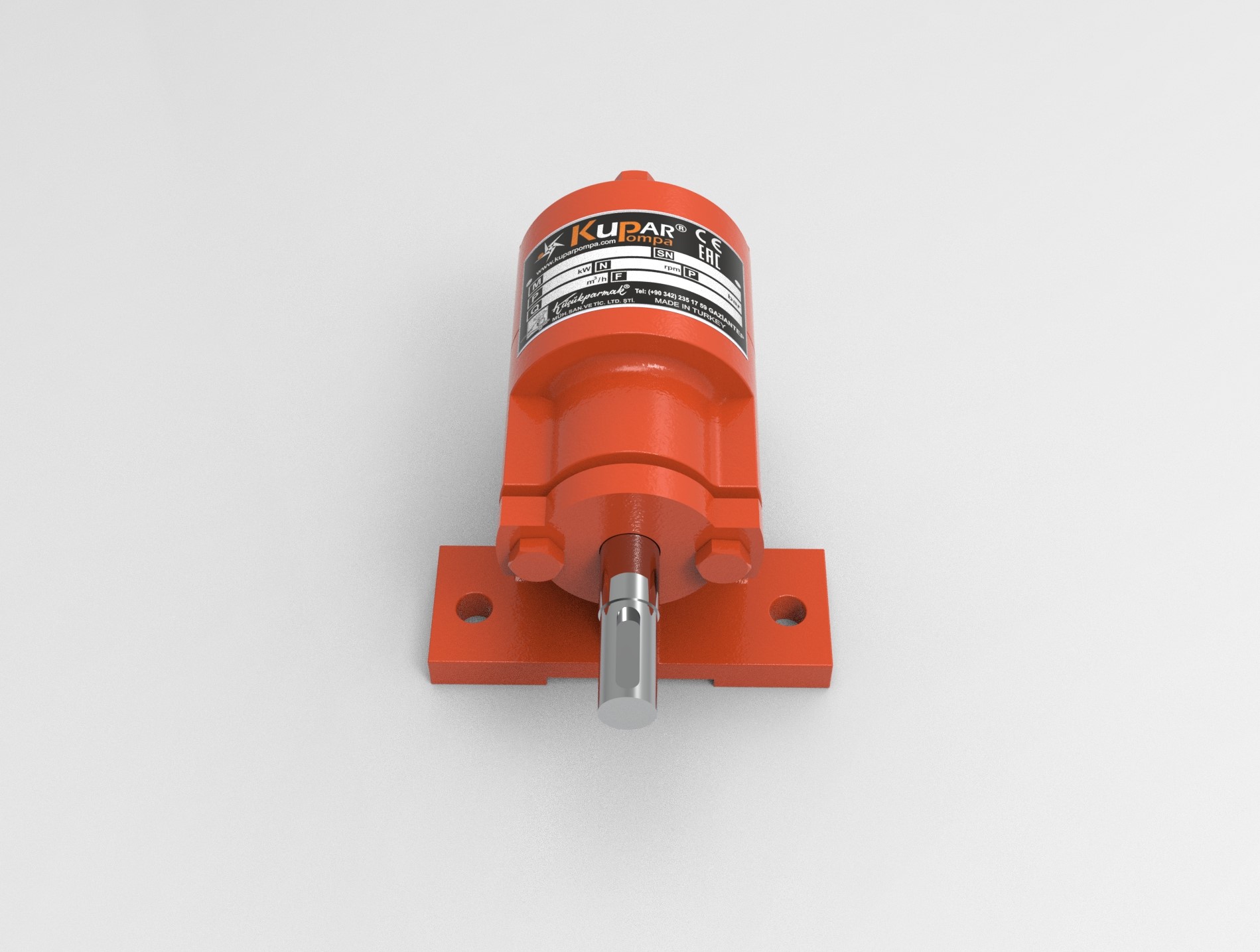

KHP½" Helical Gear Pump

• Inlet-Outlet: Boru Diş ½"
• Flow Rate: 0,006 L/rev
• Maximum Flow: 0,54 m³/h
• Pressure Range: 1-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron / AISI316 Stainless Steel
• Gear Material: GG25 Pik Dök. / AISI316 Stainless Steel / Bronze
• Bushing: Bronze / Carbon Aided Teflon
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Filter
• Dimensions: 18,4 cm x 12,0 cm x 10,7 cm
• Weight: 5,5 KG

Performance Curves
Technical Drawing
