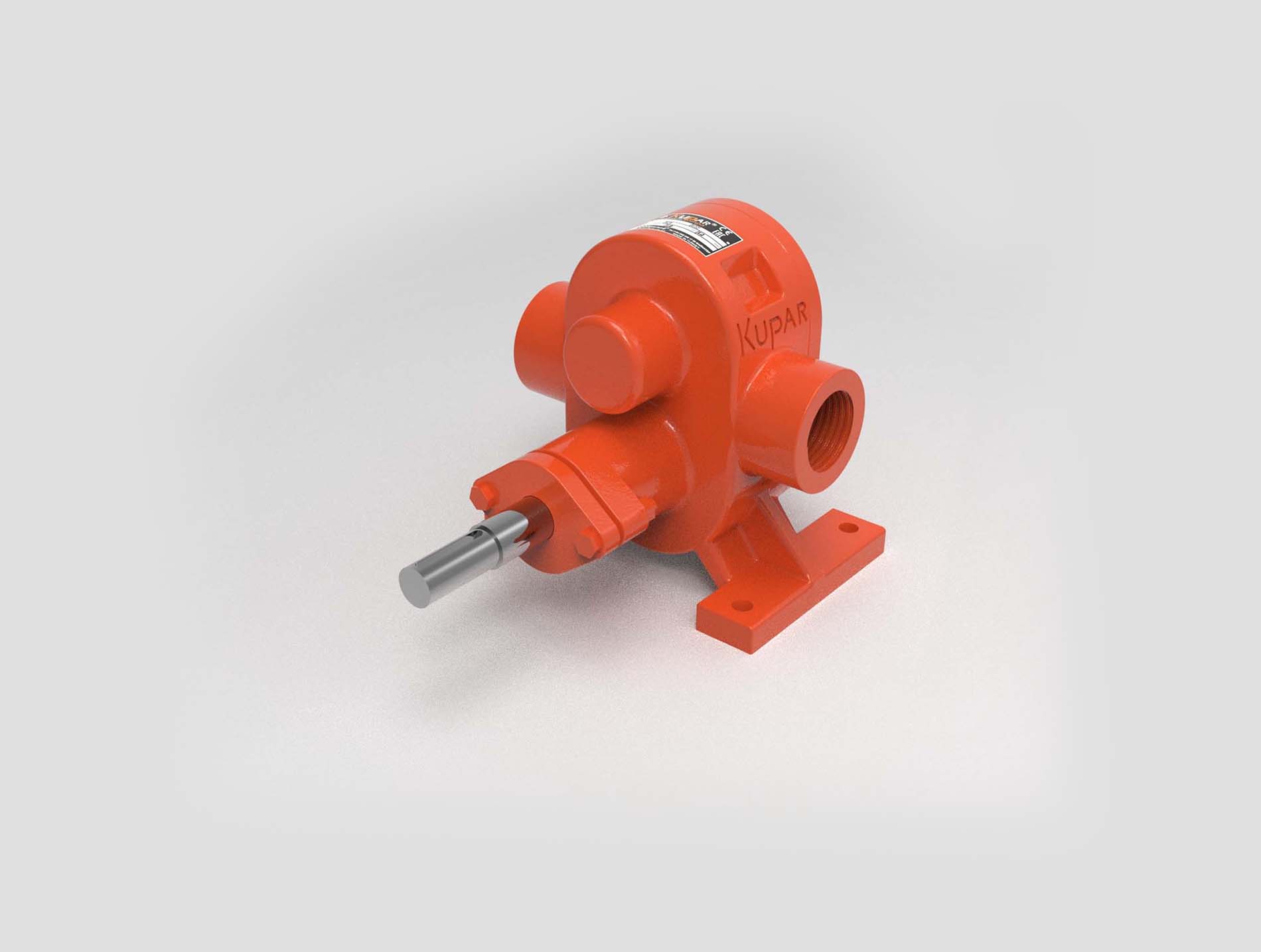

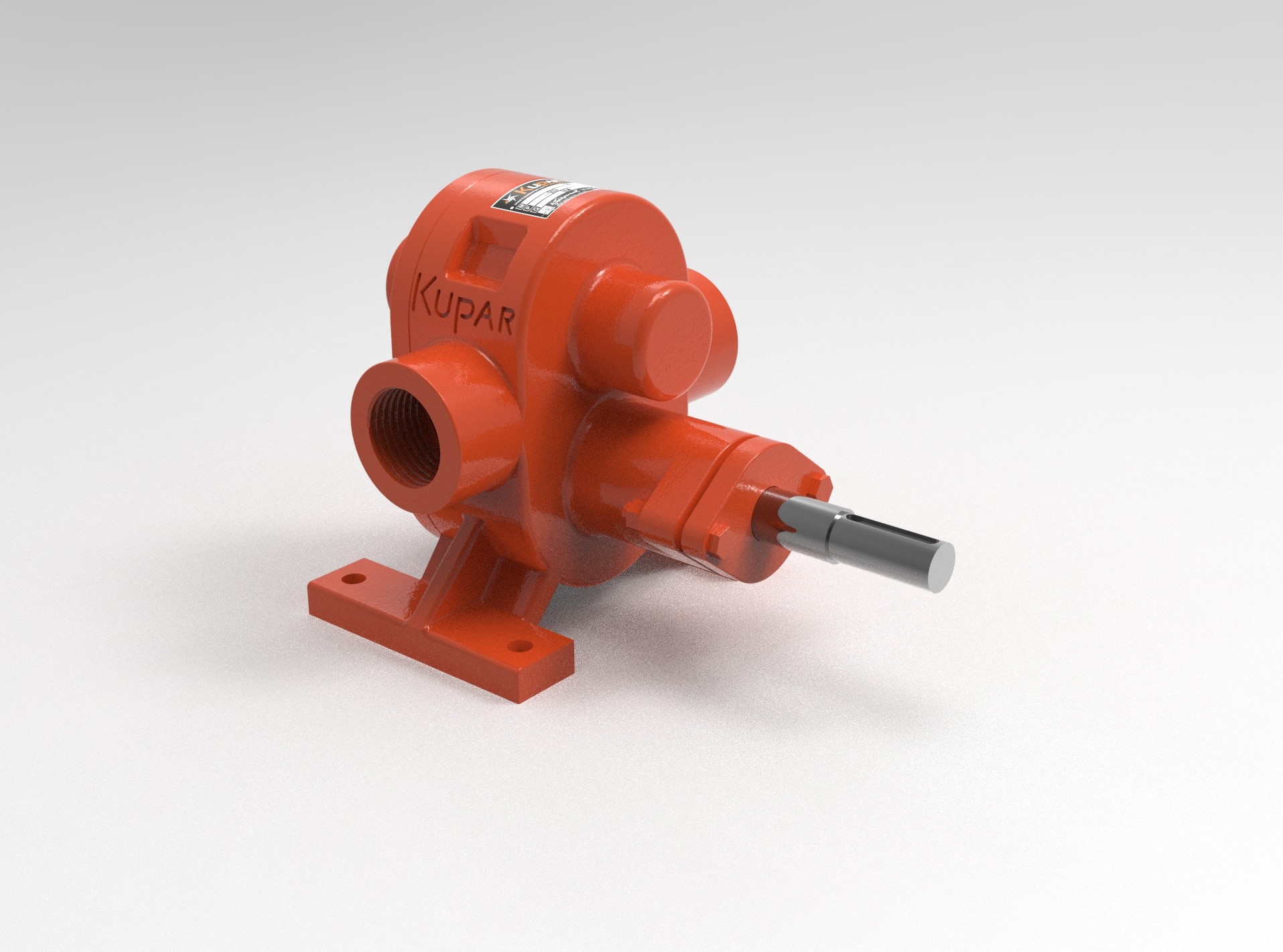

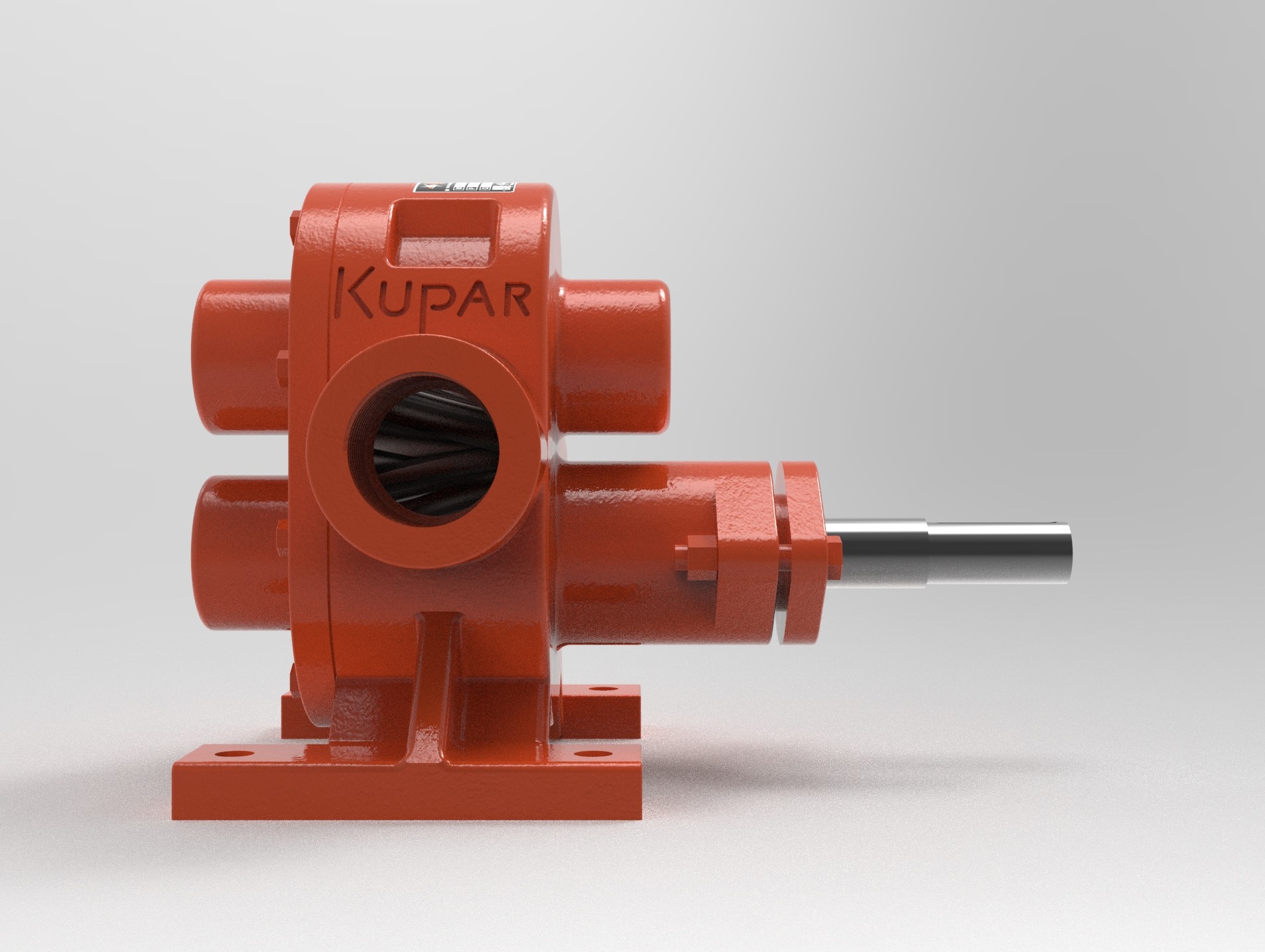

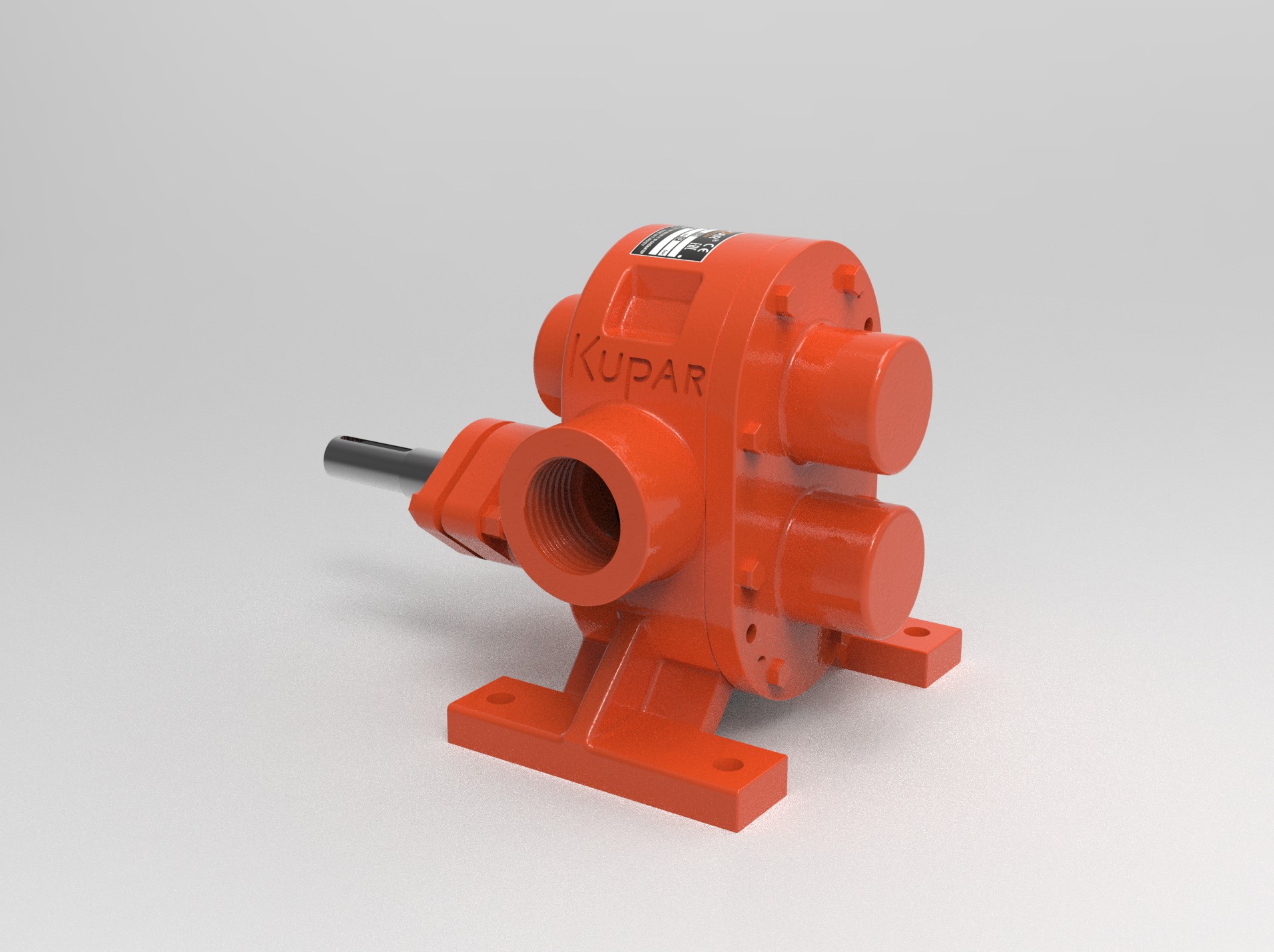

KHP1½" Helical Gear Pump

• Inlet-Outlet: Boru Diş 1½"
• Flow Rate: 0,125 L/rev
• Maximum Flow: 11,25 m³/h
• Pressure Range: 1-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron / AISI316 Stainless Steel / Bronze
• Gear Material: GG25 Cast Iron / AISI316 Stainless Steel / Bronze
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing / Lip Seal
• Accessories: Heating Jacket / Relief Valve / Filter
• Dimensions: 30,3 cm x 19,8 cm x 20,5 cm
• Weight: 18 KG

Performance Curves
Technical Drawing
