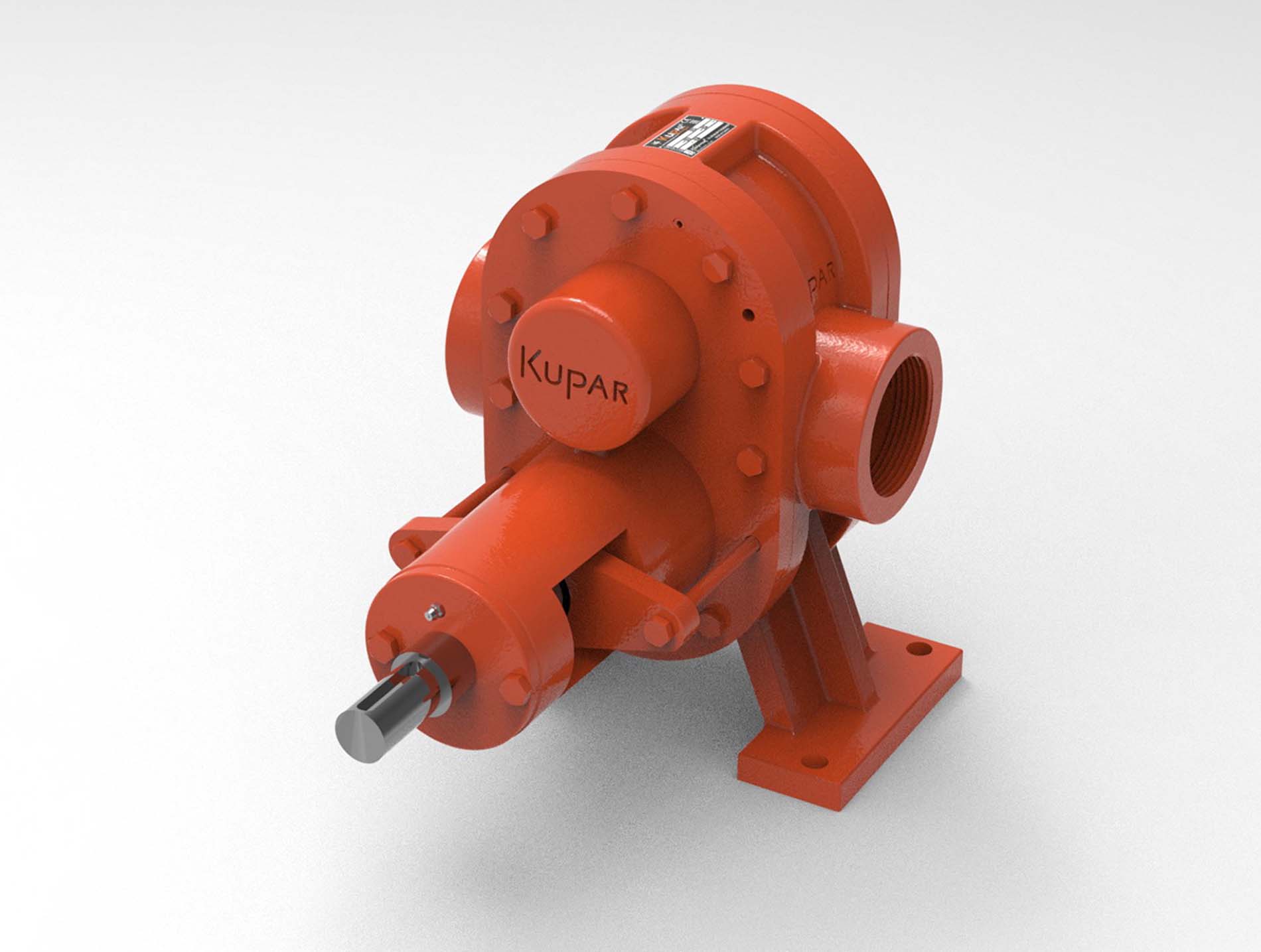

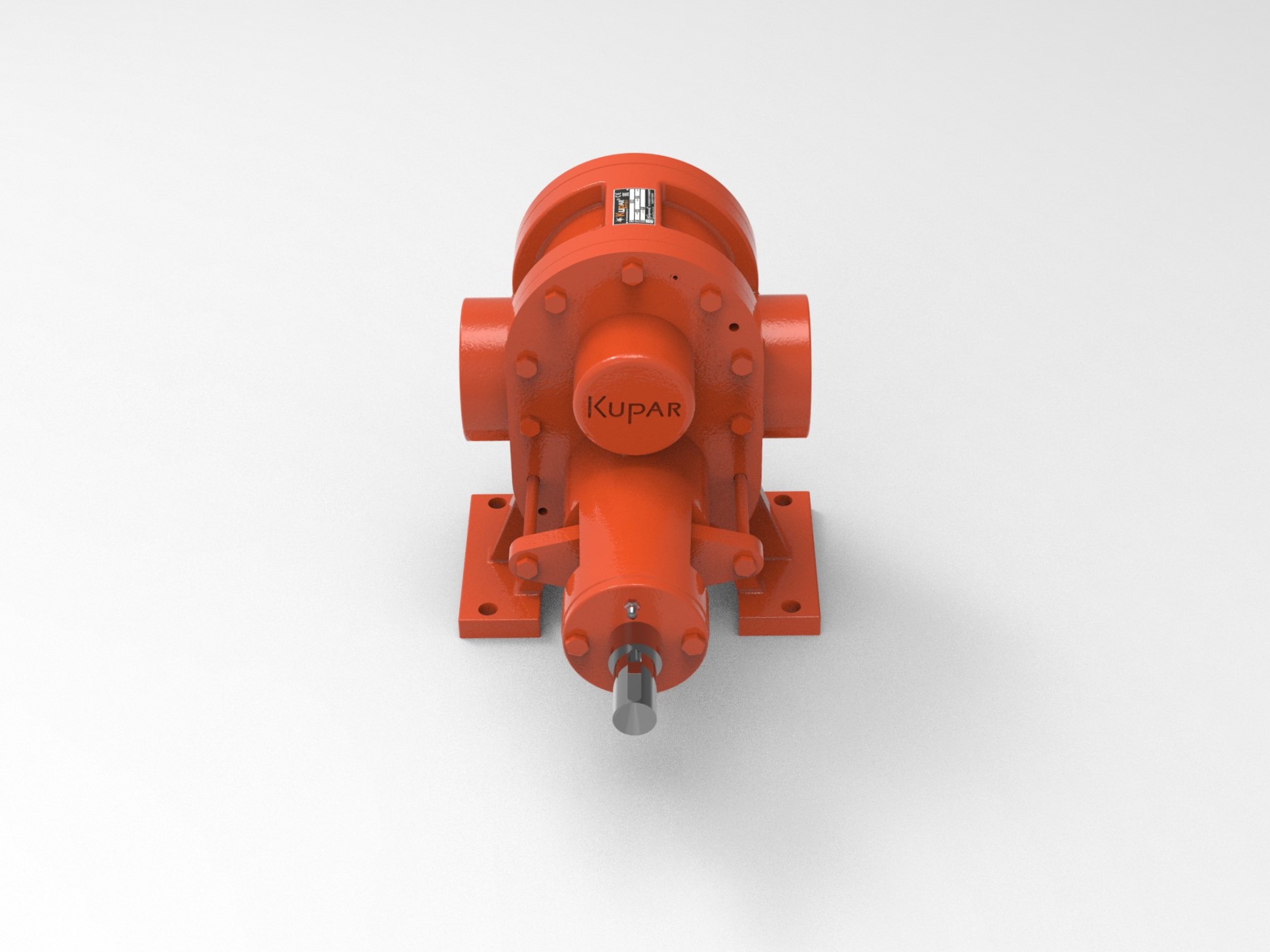

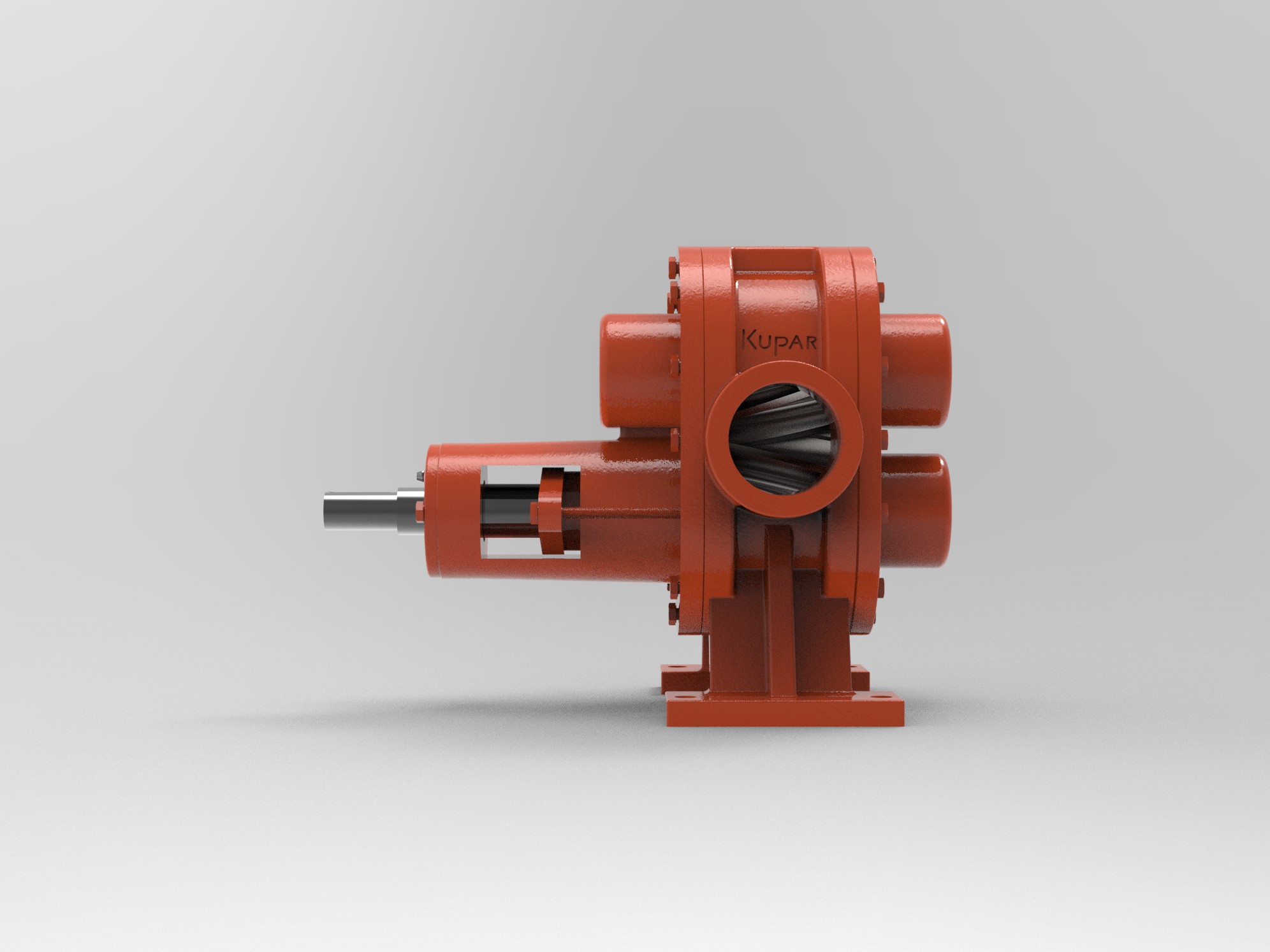

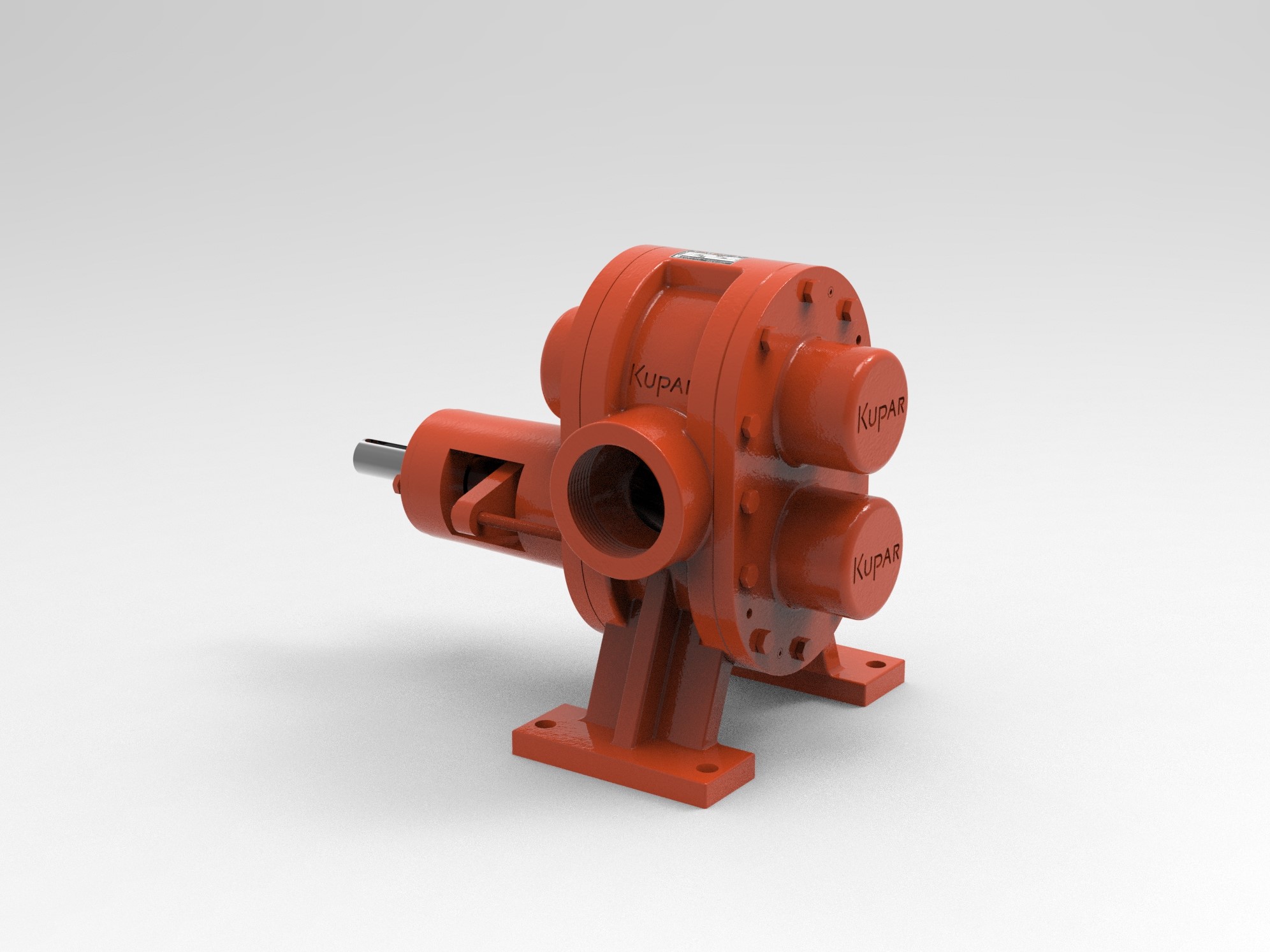

KHP3" Helical Gear Pump

• Inlet-Outlet: Boru Diş 3"
• Flow Rate: 0,833 L/rev
• Maximum Flow: 50 m³/h
• Pressure Range: 1-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron / AISI316 Stainless Steel / Bronze
• Gear Material: GG25 Cast Iron / AISI316 Stainless Steel / Bronze
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing / Lip Seal
• Accessories: Heating Jacket / Relief Valve / Filter
• Dimensions: 51 cm x 37,8 cm x 31 cm
• Weight: 80 KG

Performance Curves
Technical Drawing
