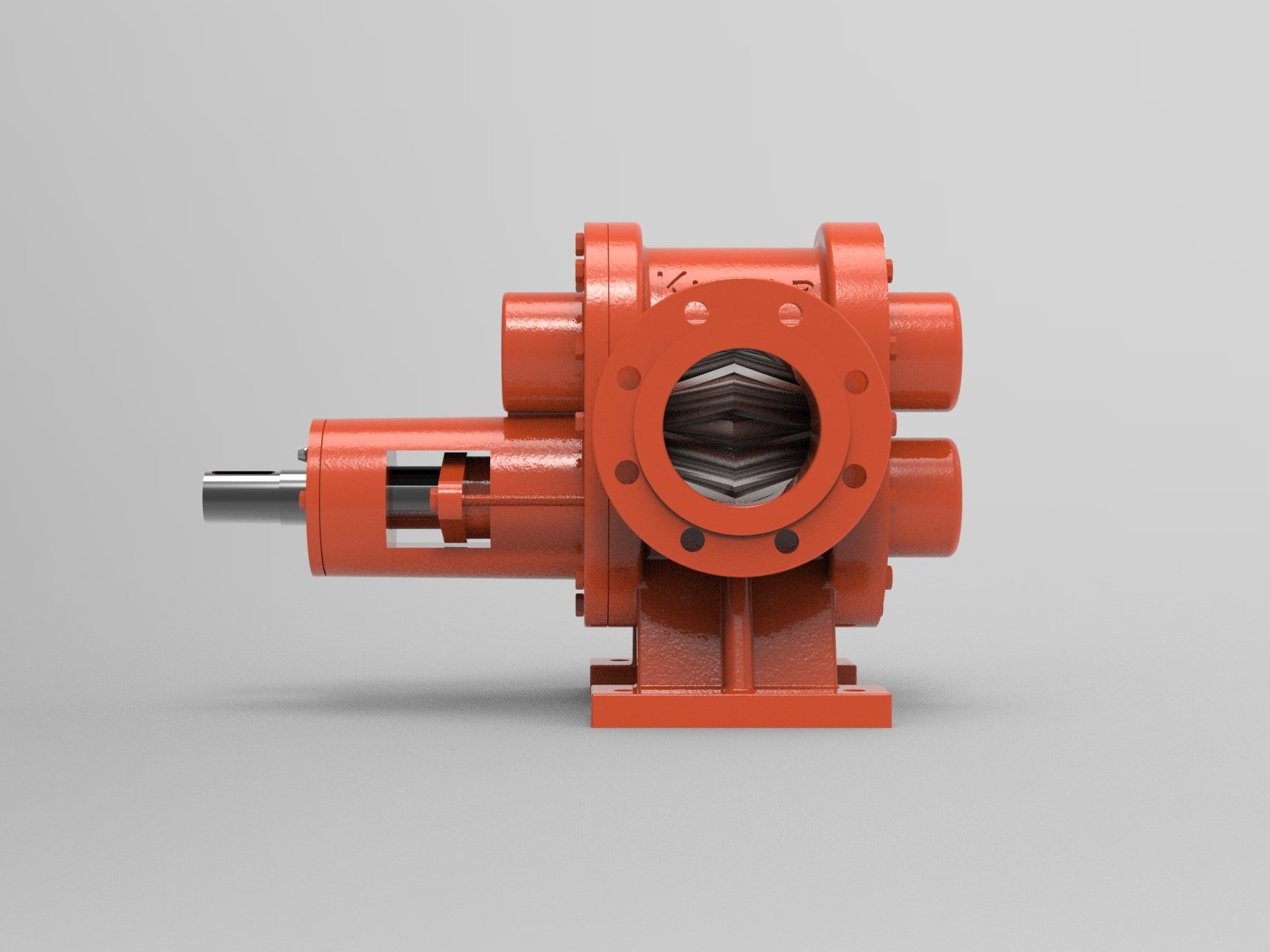

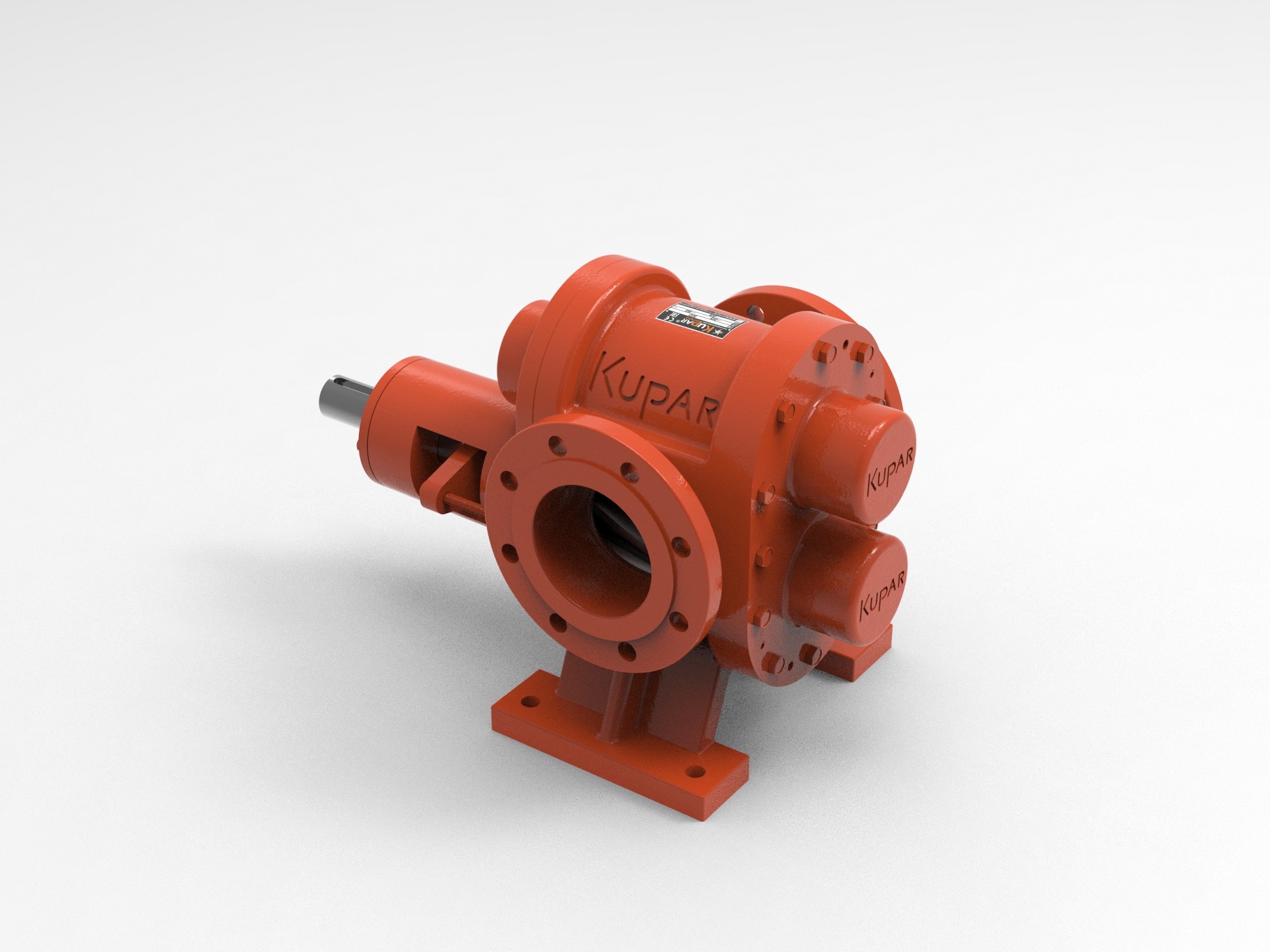

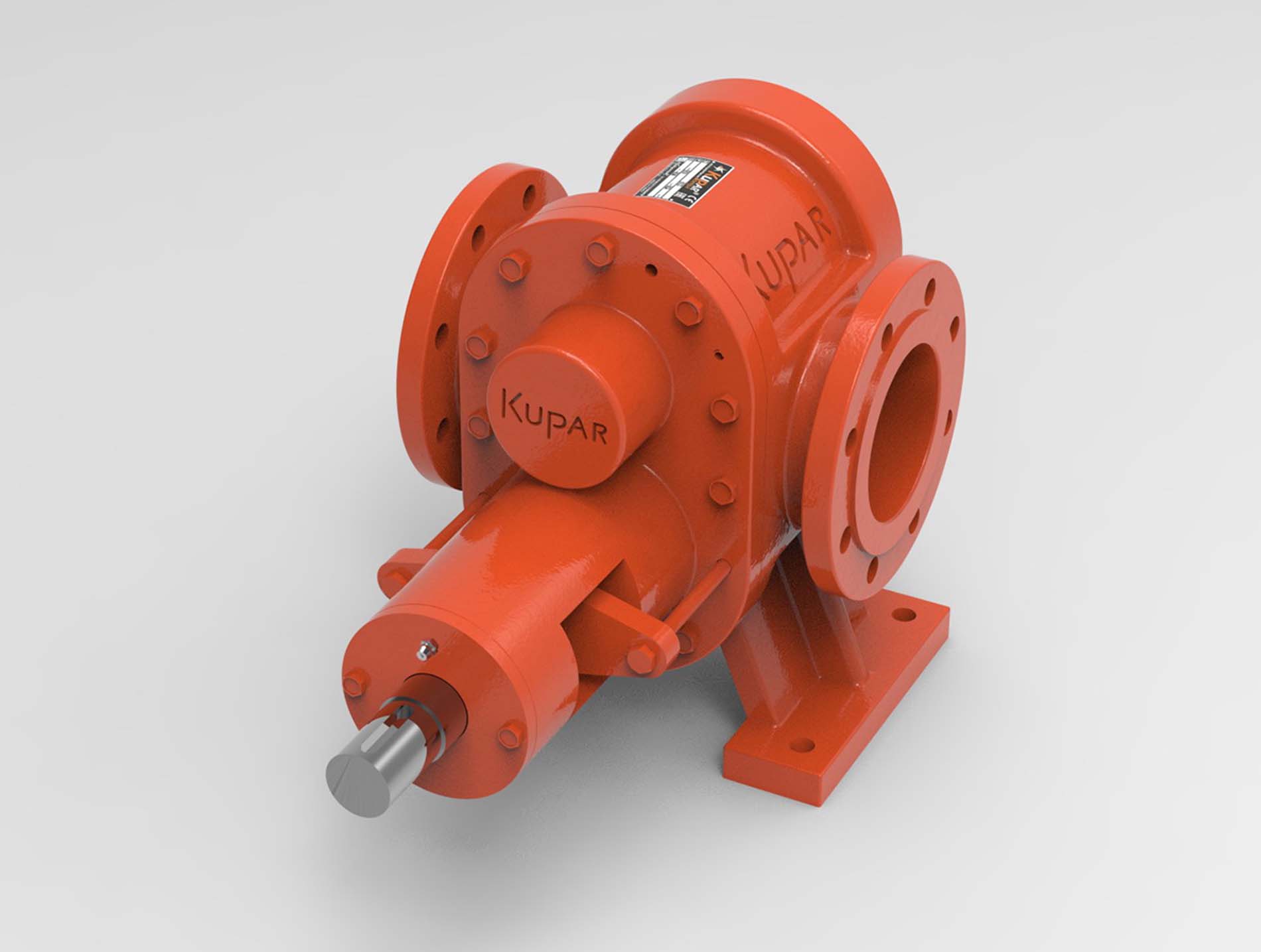

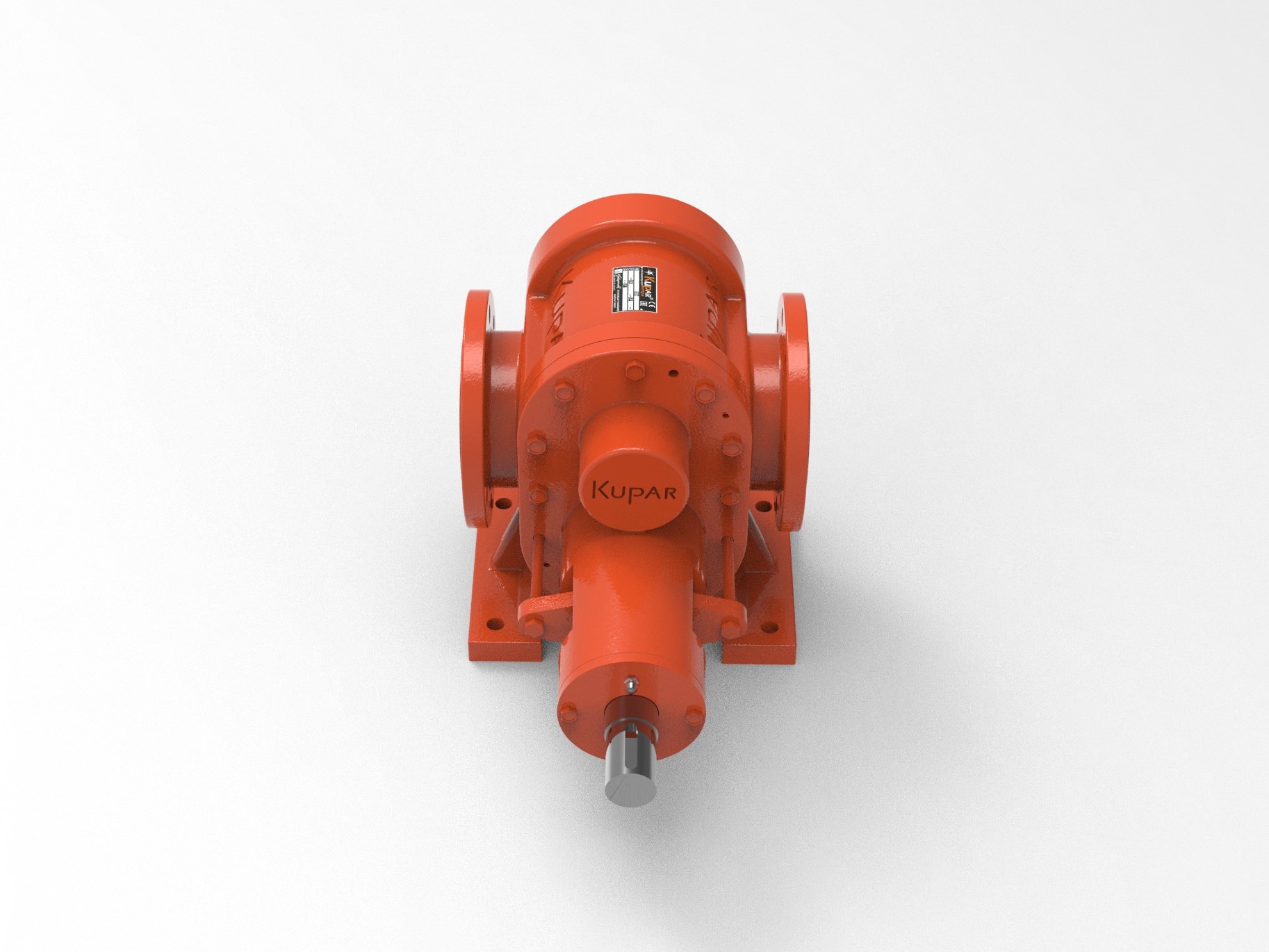

KHP4" Helical Gear Pump

• Inlet-Outlet: Boru Diş 4"
• Flow Rate: 1,250 L/rev
• Maximum Flow: 75 m³/h
• Pressure Range: 1-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron
• Gear Material: GG25 Cast Iron
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing / Lip Seal
• Accessories: Heating Jacket / Relief Valve / Filter
• Dimensions: 59,2 cm x 38,2 cm x 31,2 cm
• Weight: 107 KG

Performance Curves
Technical Drawing
