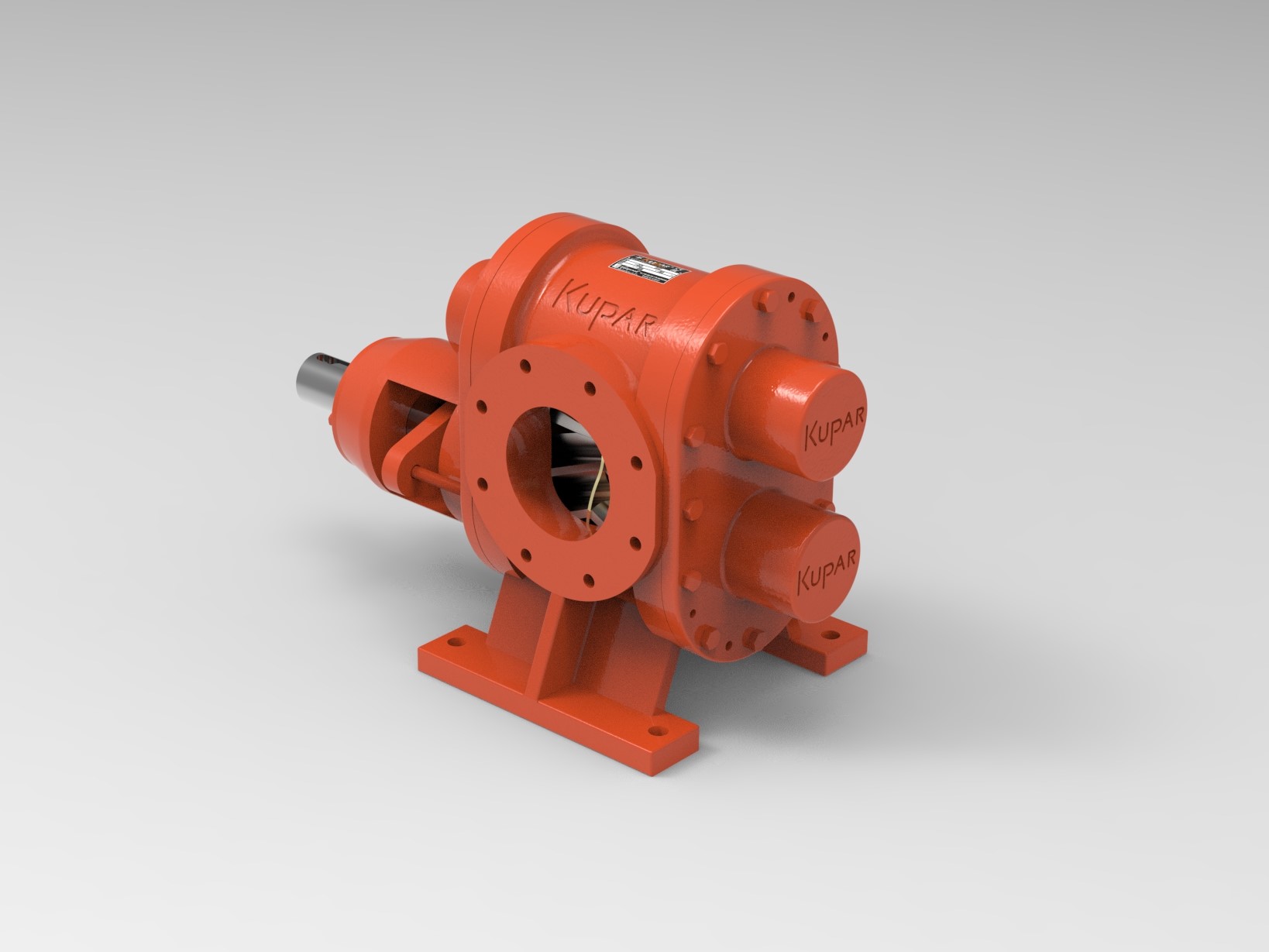

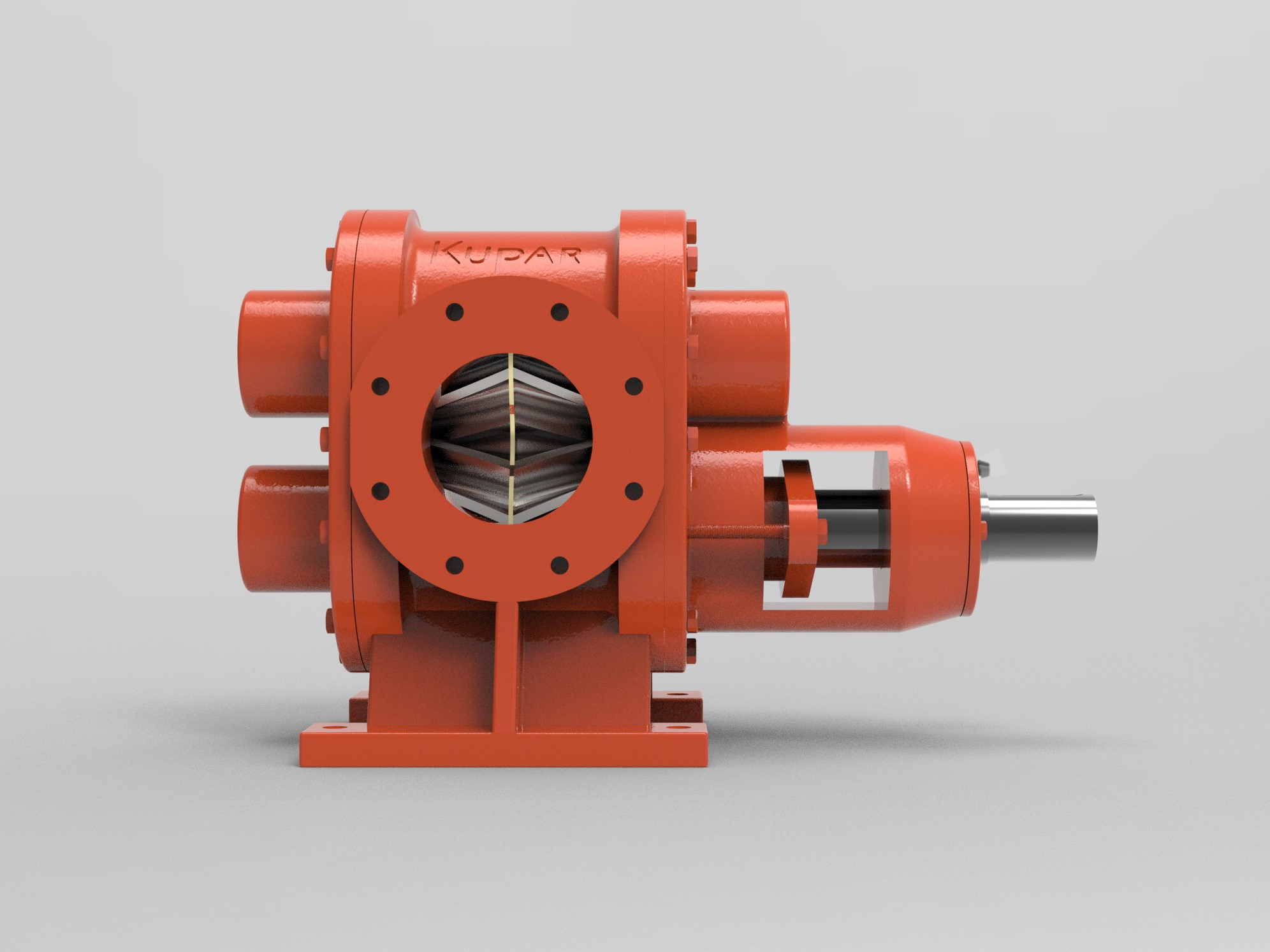

KHP6" Helical Gear Pump

• Inlet-Outlet: DN150 Flange 6"
• Flow Rate: 3,958 L/rev
• Maximum Flow: 95 m³/h
• Pressure Range: 1-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron
• Gear Material: GG25 Cast Iron
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing / Lip Seal
• Accessories: Heating Jacket / Relief Valve / Filter
• Dimensions: 79 cm x 50 cm x 38 cm
• Weight: 260 KG

Performance Curves
Technical Drawing
