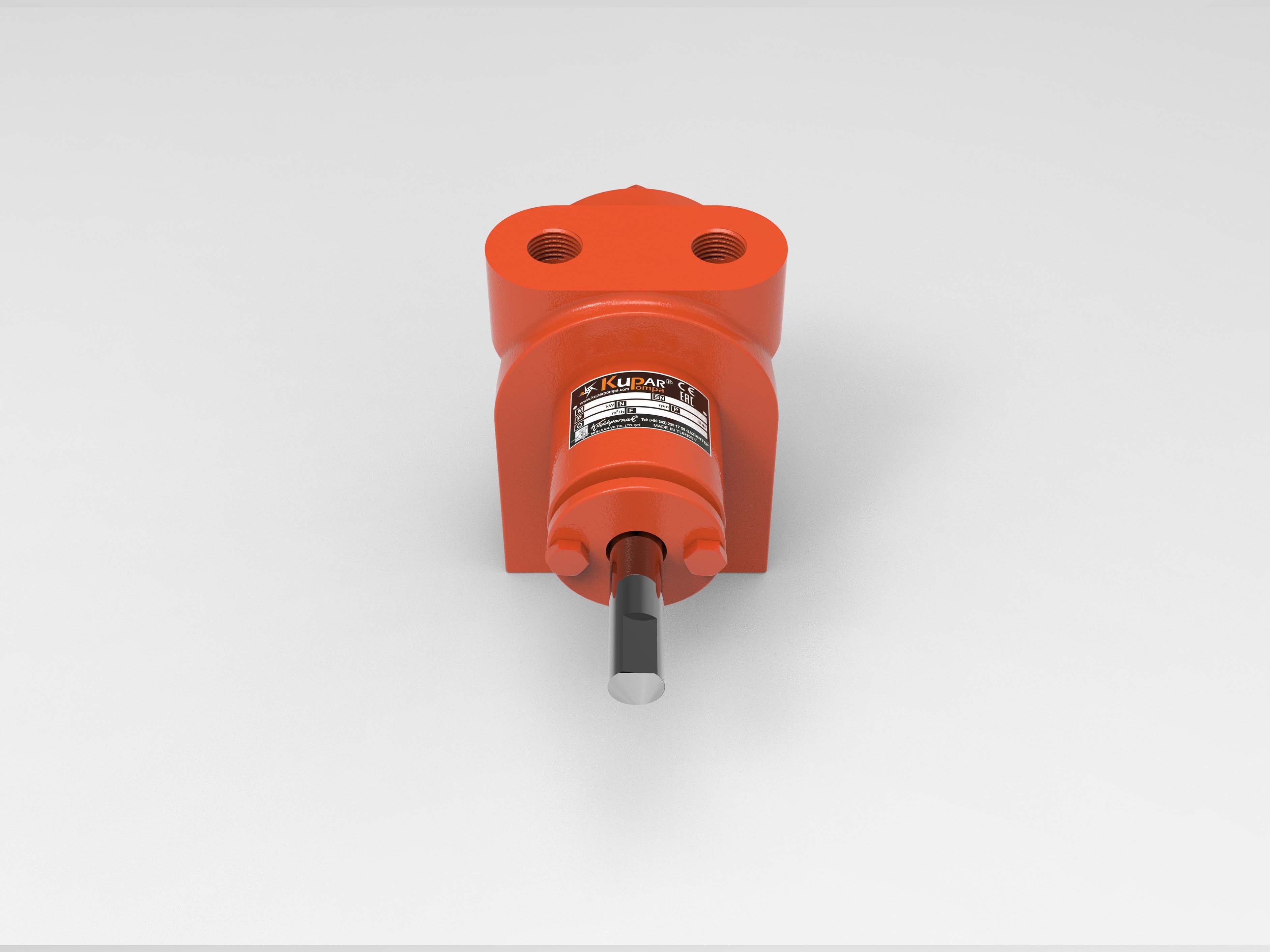

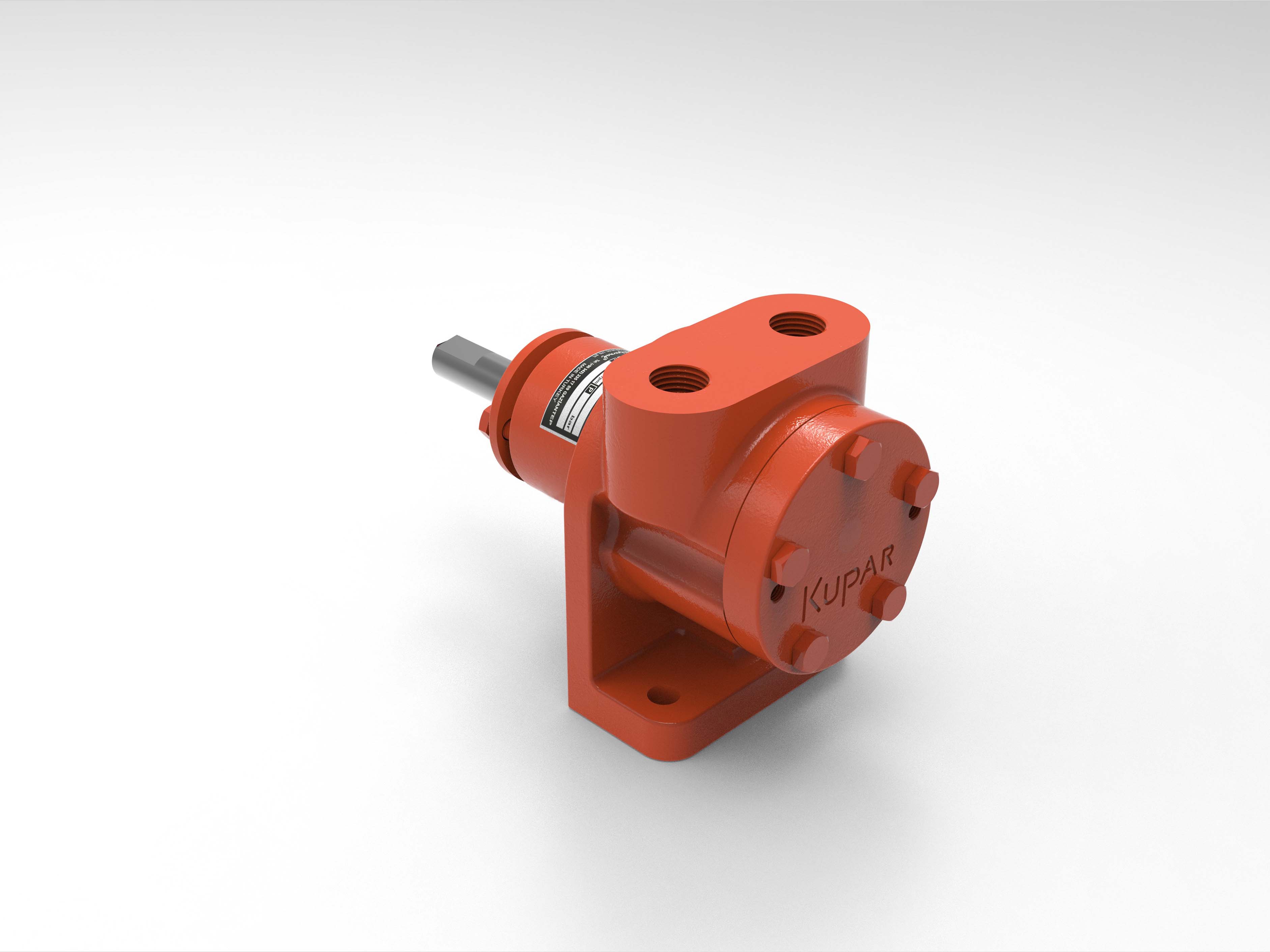

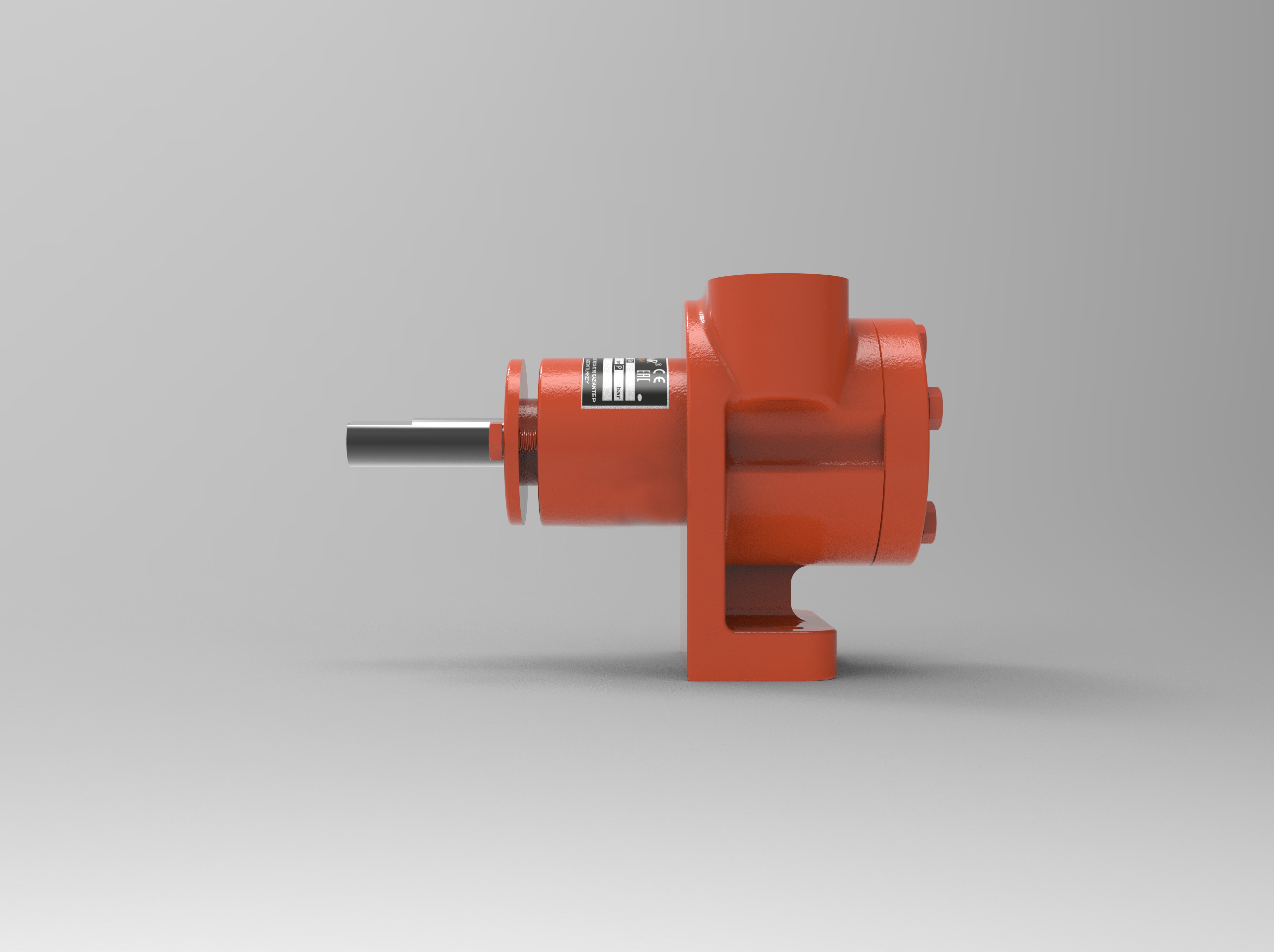

KIP⅜“ Internal Gear Pumps

• Inlet-Outlet: Boru Diş ⅜"
• Flow Rate: 0,004 L/rev
• Maximum Flow: 0,35 m³/h
• Pressure Range: 2-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100- 25 000 Cp
• Body Material: GG25 Cast Iron
• Gear Material: AISI1040 Steel
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket, Filter
• Dimensions: 16,2 cm x 10,6 cm x 8 cm
• Weight: 3,1 KG

Performance Curves
Technical Drawing
