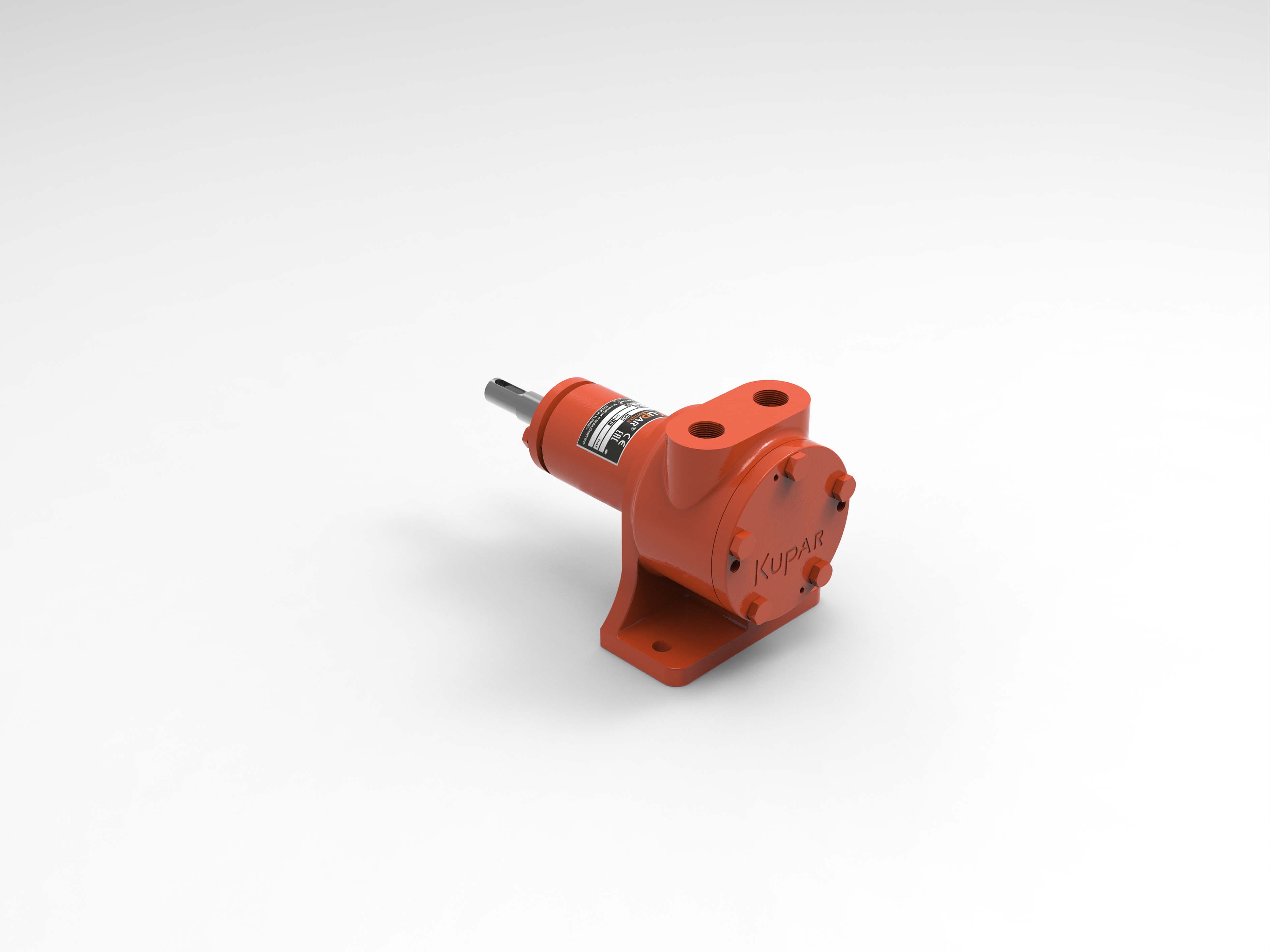

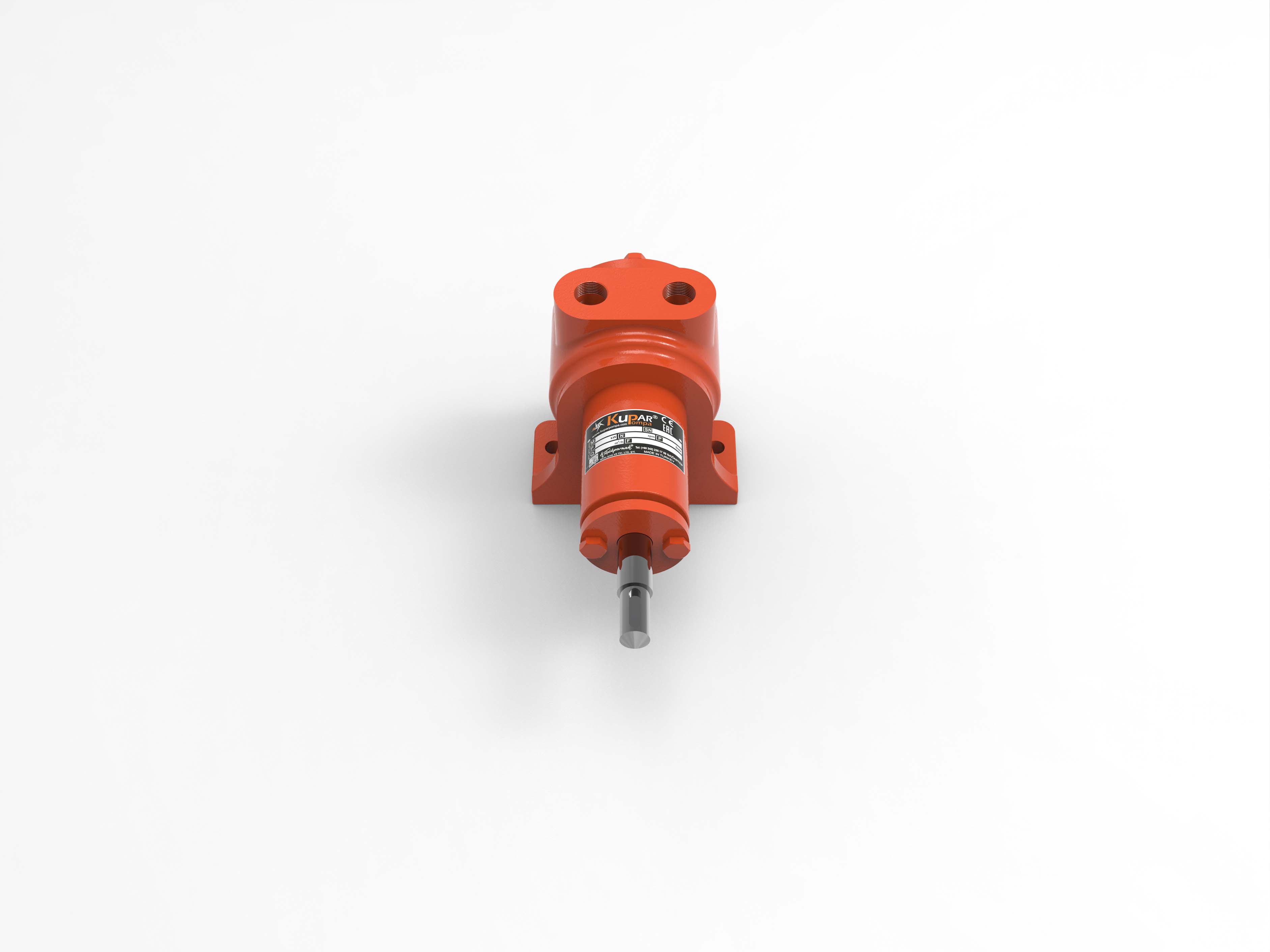

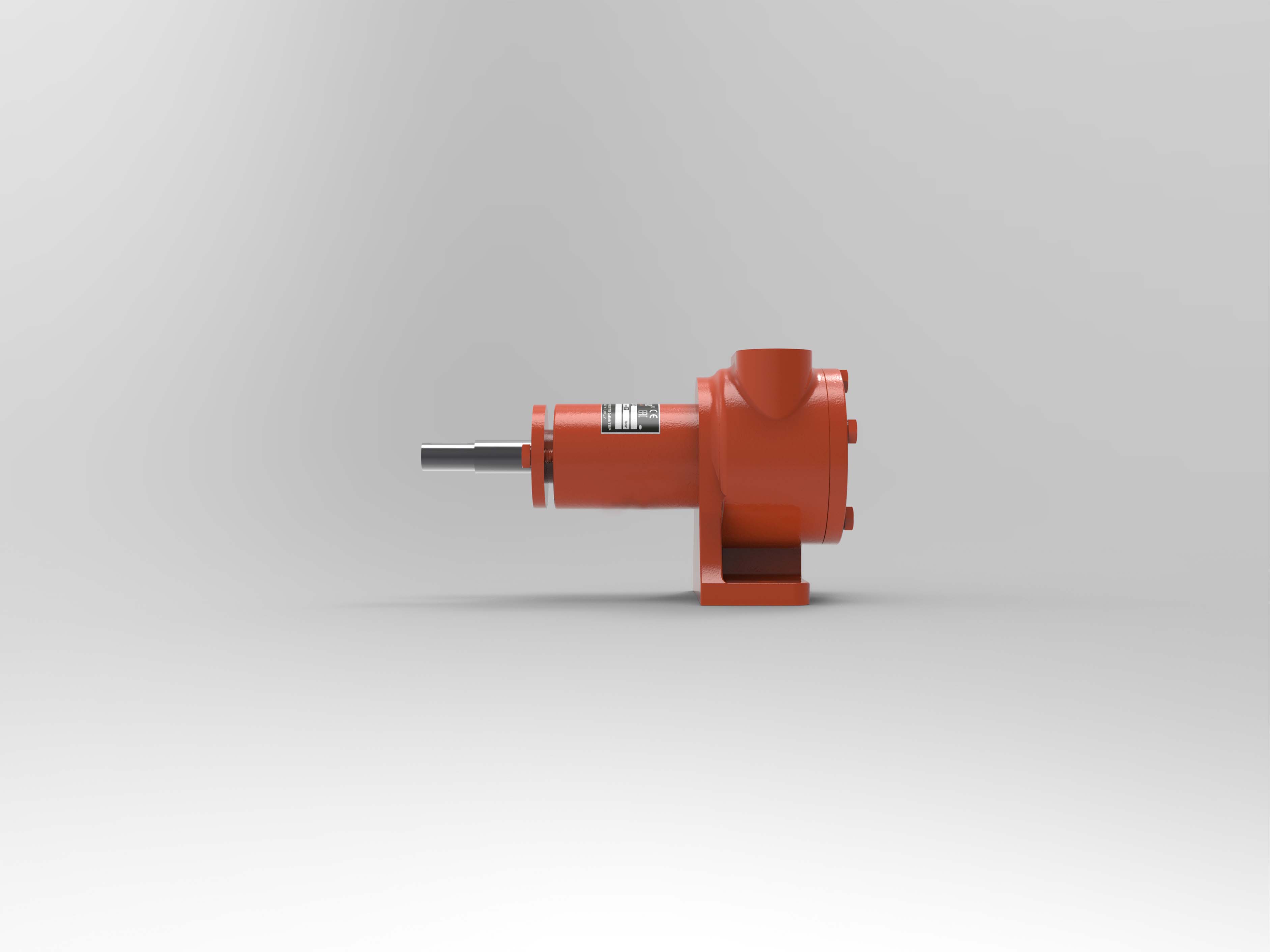

KIP½” Internal Gear Pumps

• Inlet-Outlet: Boru Diş ½"
• Flow Rate: 0,017 L/rev
• Maximum Flow: 1,5 m³/h
• Pressure Range: 2-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100-25 000 Cp
• Body Material: GG25 Cast Iron
• Gear Material: AISI1040 Steel
• Bushing: Bronze / Carbon Aided Teflon
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket, Filter
• Dimensions: 24 cm x 13,8 cm x 12,5 cm
• Weight: 7,5 KG

Performance Curves
Technical Drawing
