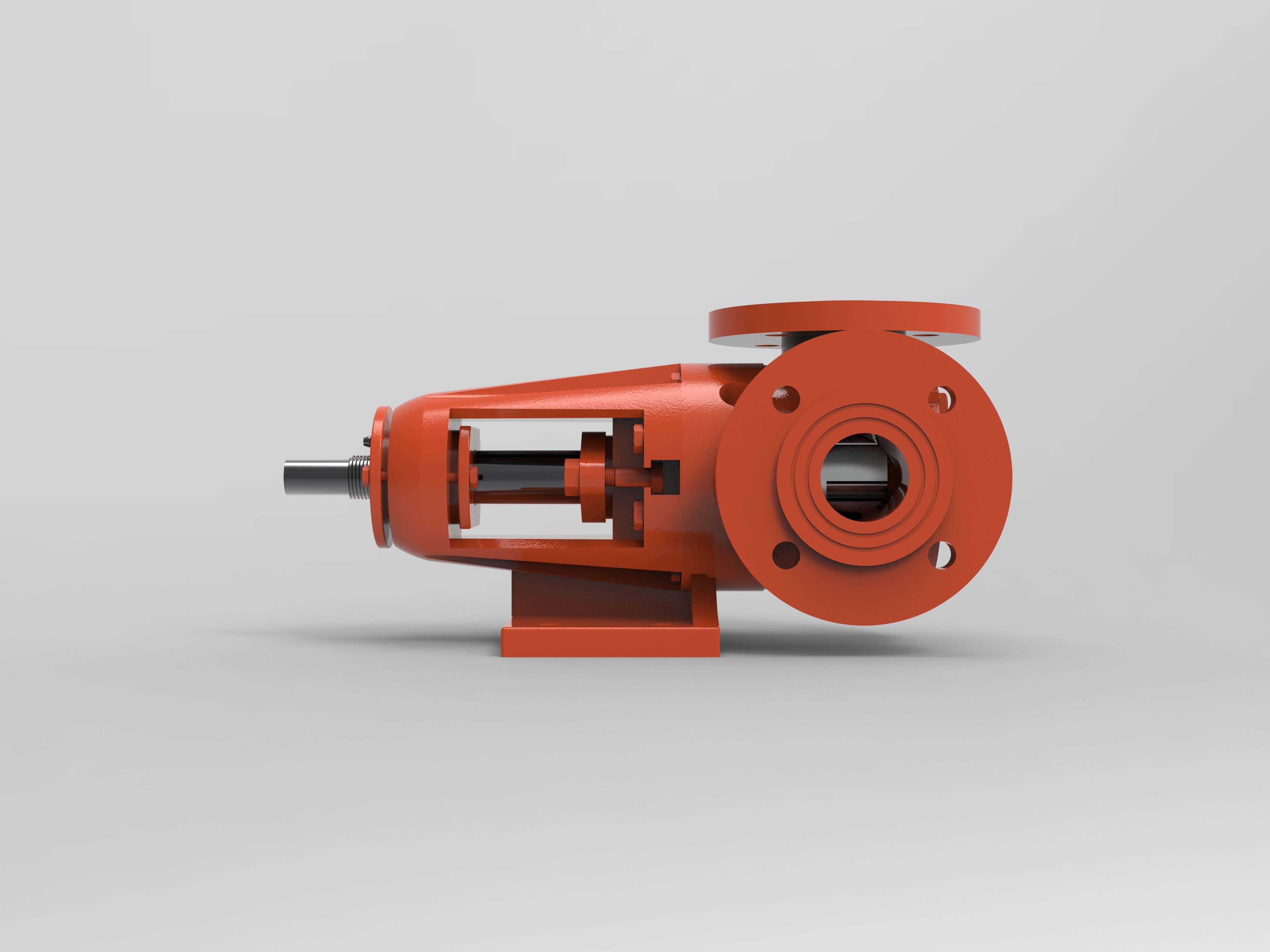

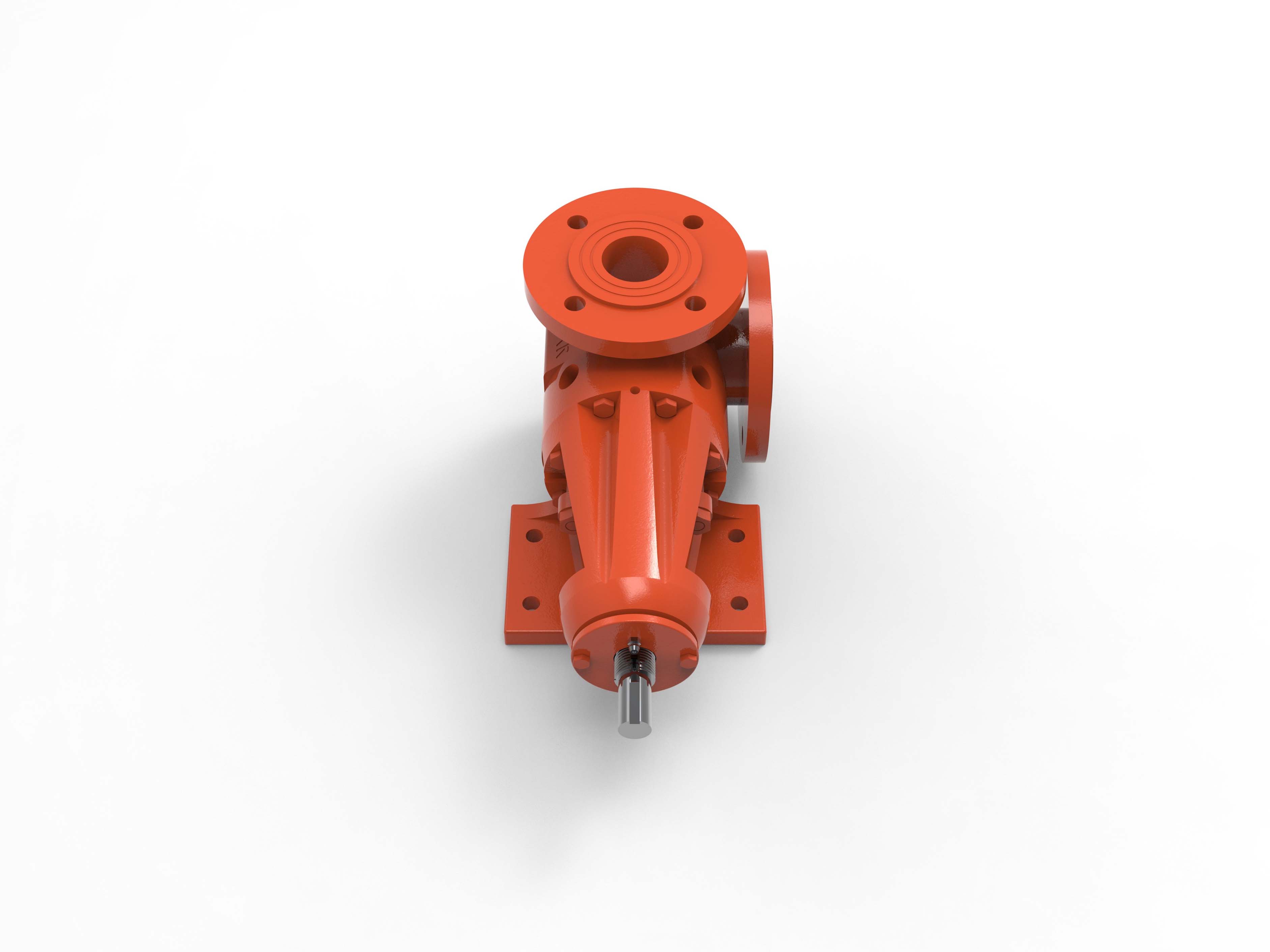

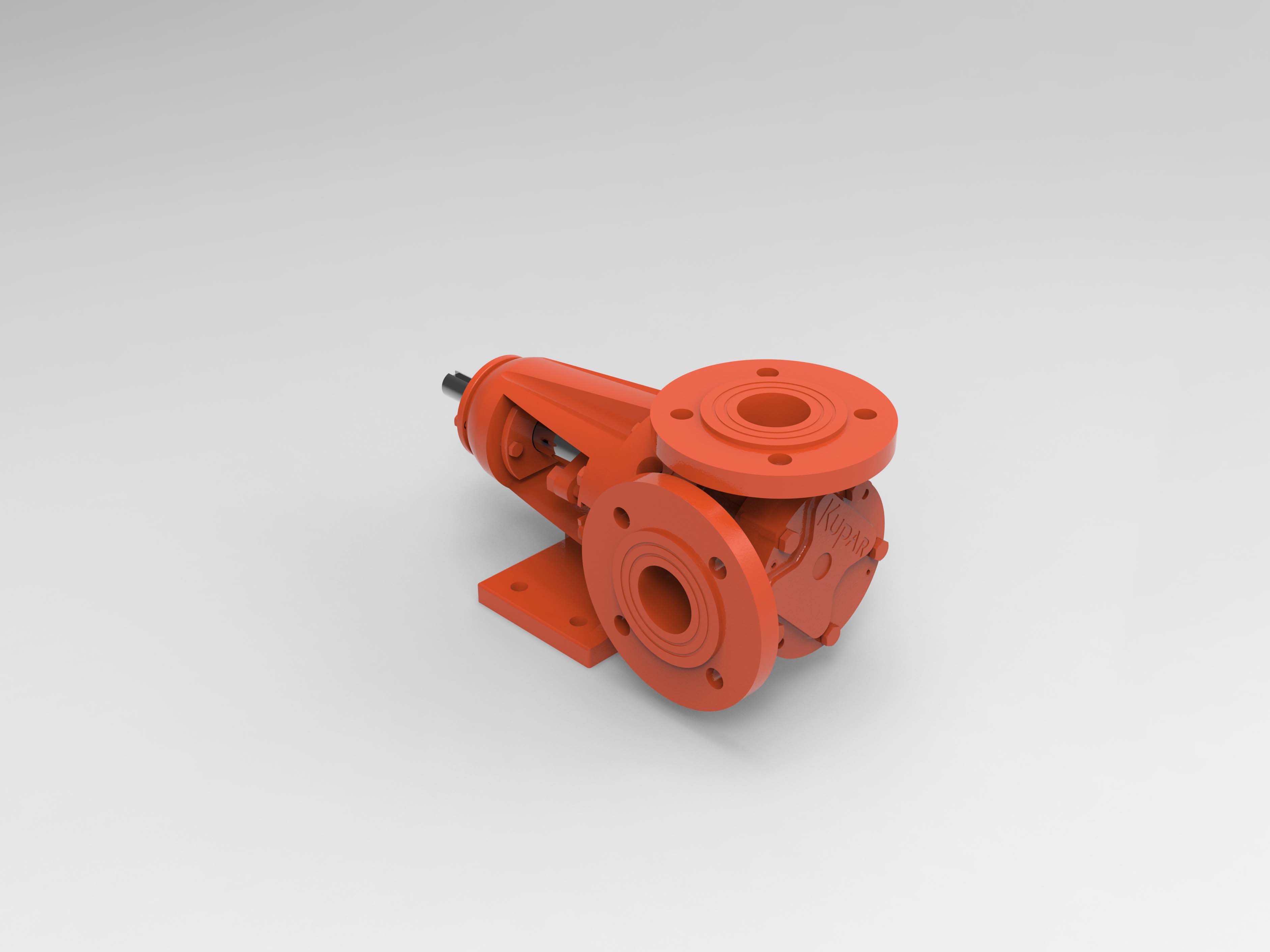

KIPK1½” Internal Gear Pumps

• Inlet-Outlet: 1½" 90° Flange / Boru Diş
• Flow Rate: 0,067 L/rev
• Maximum Flow: 4 m³/h
• Pressure Range: 2-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100-25 000 Cp
• Body Material: GG25 Cast Iron / AISI316 Stainless Steel
• Gear Material: GG25 Cast Iron / AISI316 Stainless Steel
• Bushing: Bronze / Carbon Aided Teflon
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket, Relief Valve, Filter
• Dimensions: 38 cm x 18,3 cm x 18 cm
• Weight: 15,5 KG

Performance Curves
Technical Drawing
