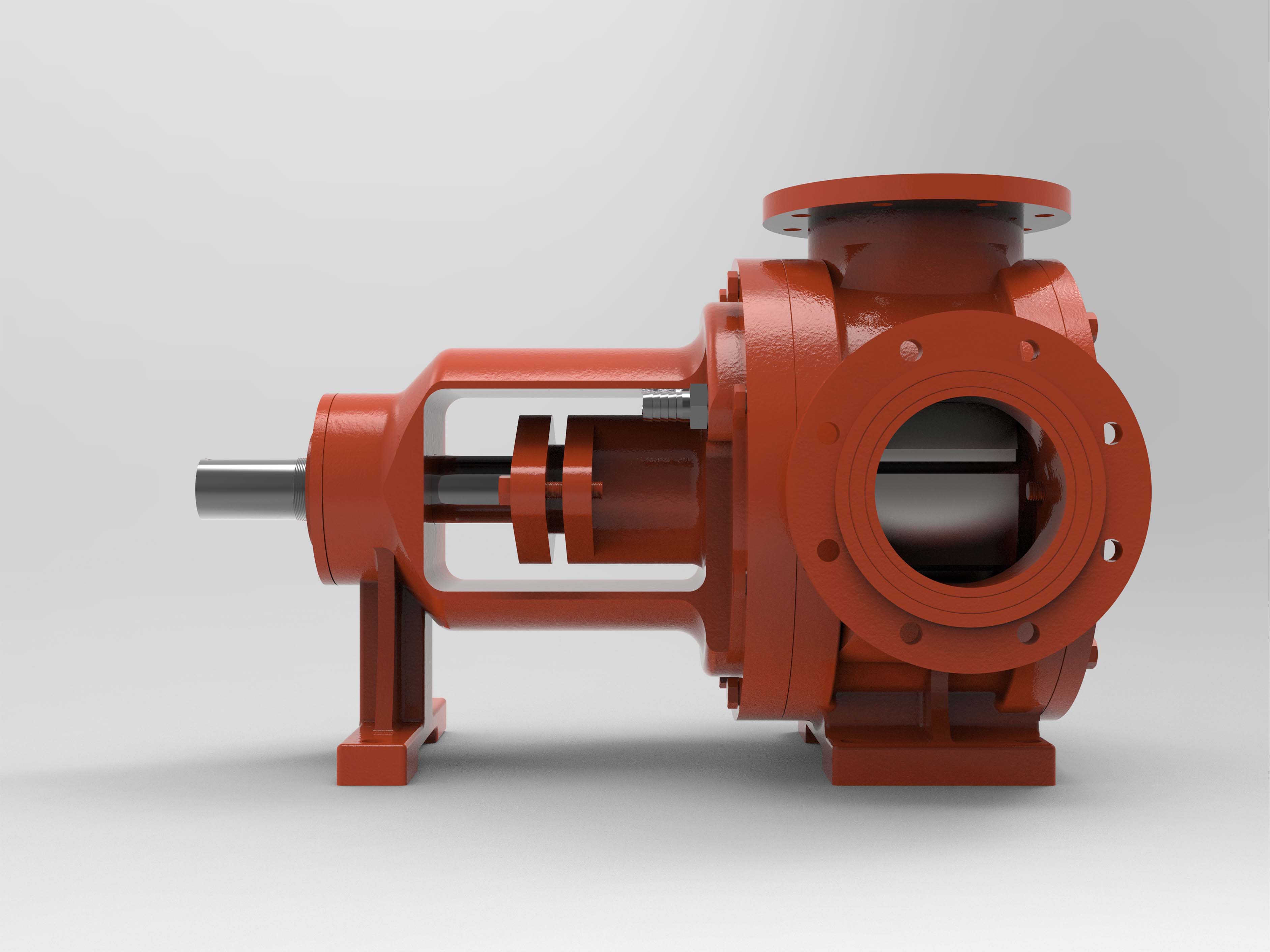

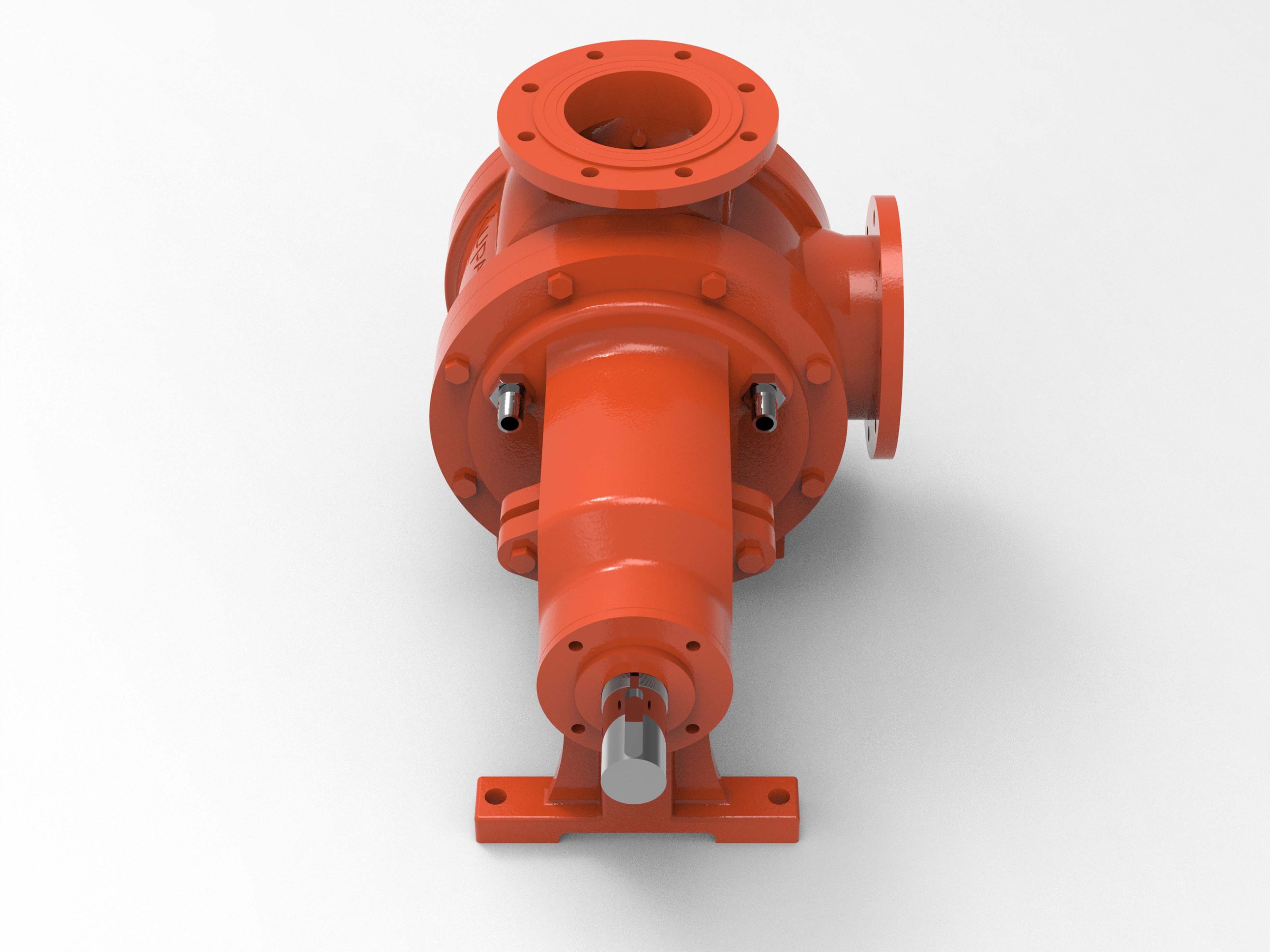

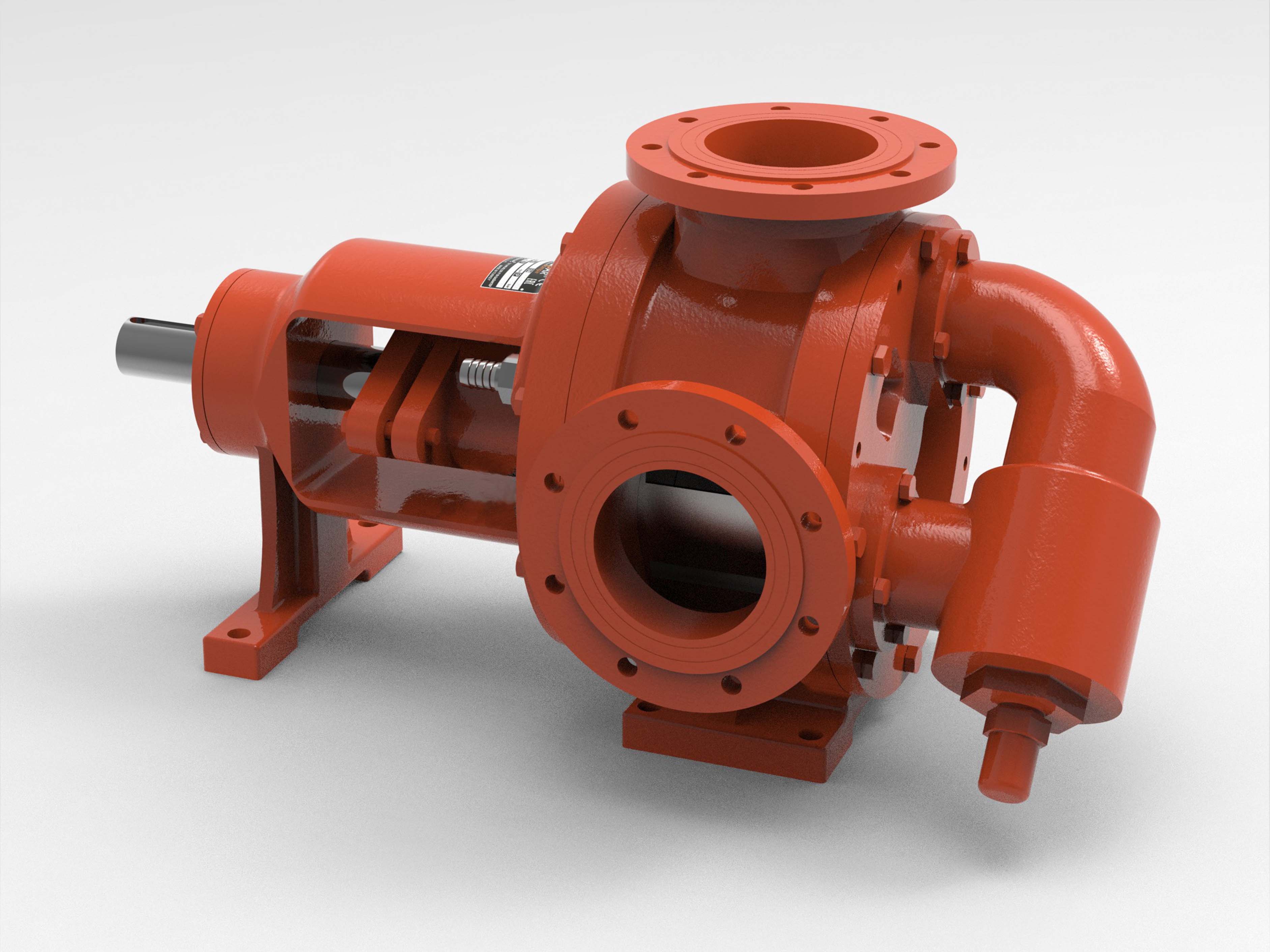

KIP6” Internal Gear Pumps

• Inlet-Outlet: 6" 90° Flange / Boru Diş
• Flow Rate: 6,19 L/rev
• Maximum Flow: 135 m³/h
• Pressure Range: 2-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100-25 000 Cp
• Body Material: GG25 Cast Iron
• Gear Material: GGG40 Ductile Iron
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket, Relief Valve, Filter
• Dimensions: 80 cm x 52,5 cm x 32 cm
• Weight: 350 KG

Performance Curves
Technical Drawing
