Lobe Pumps
KLP1½” Lobe Pump

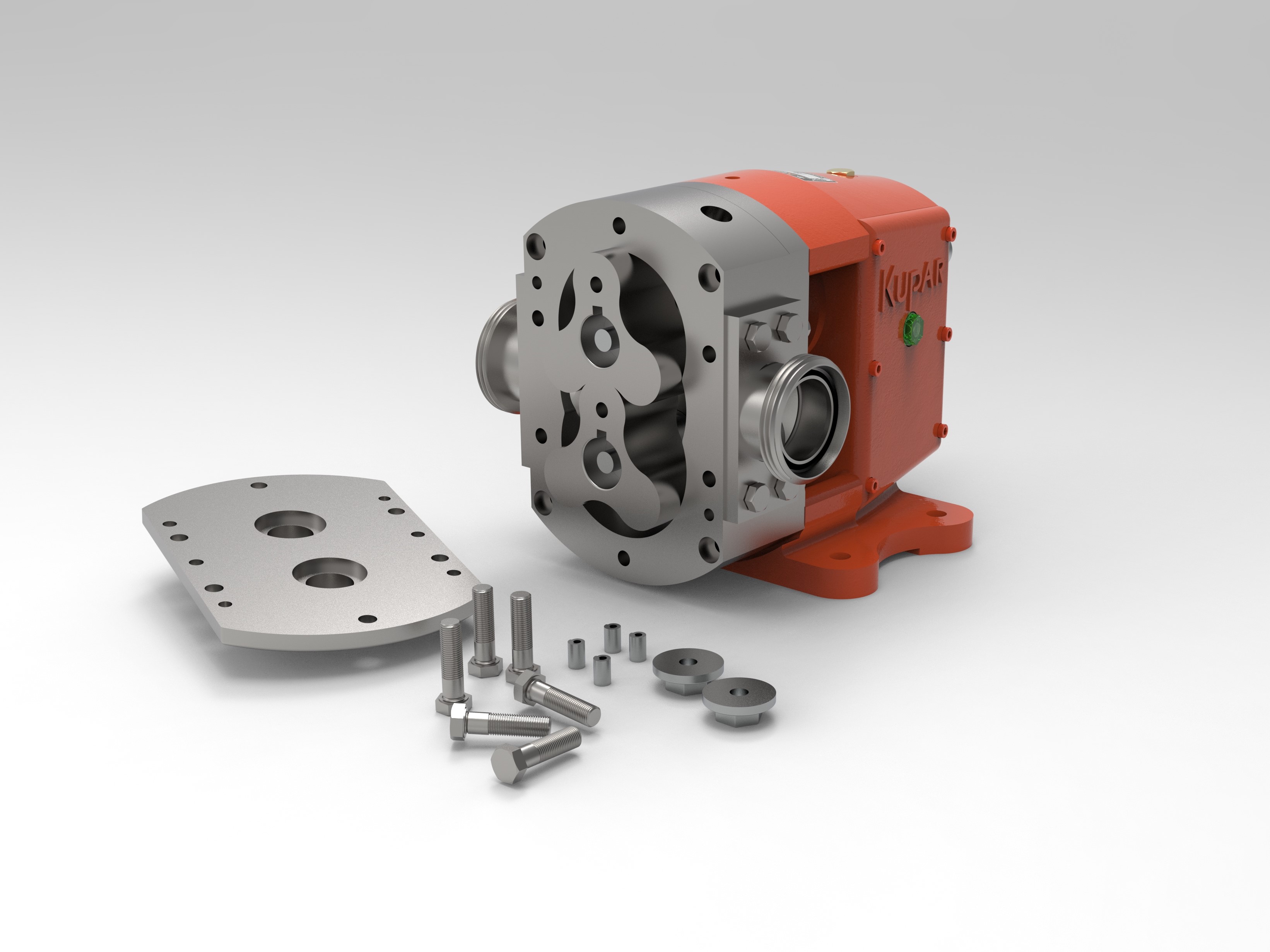

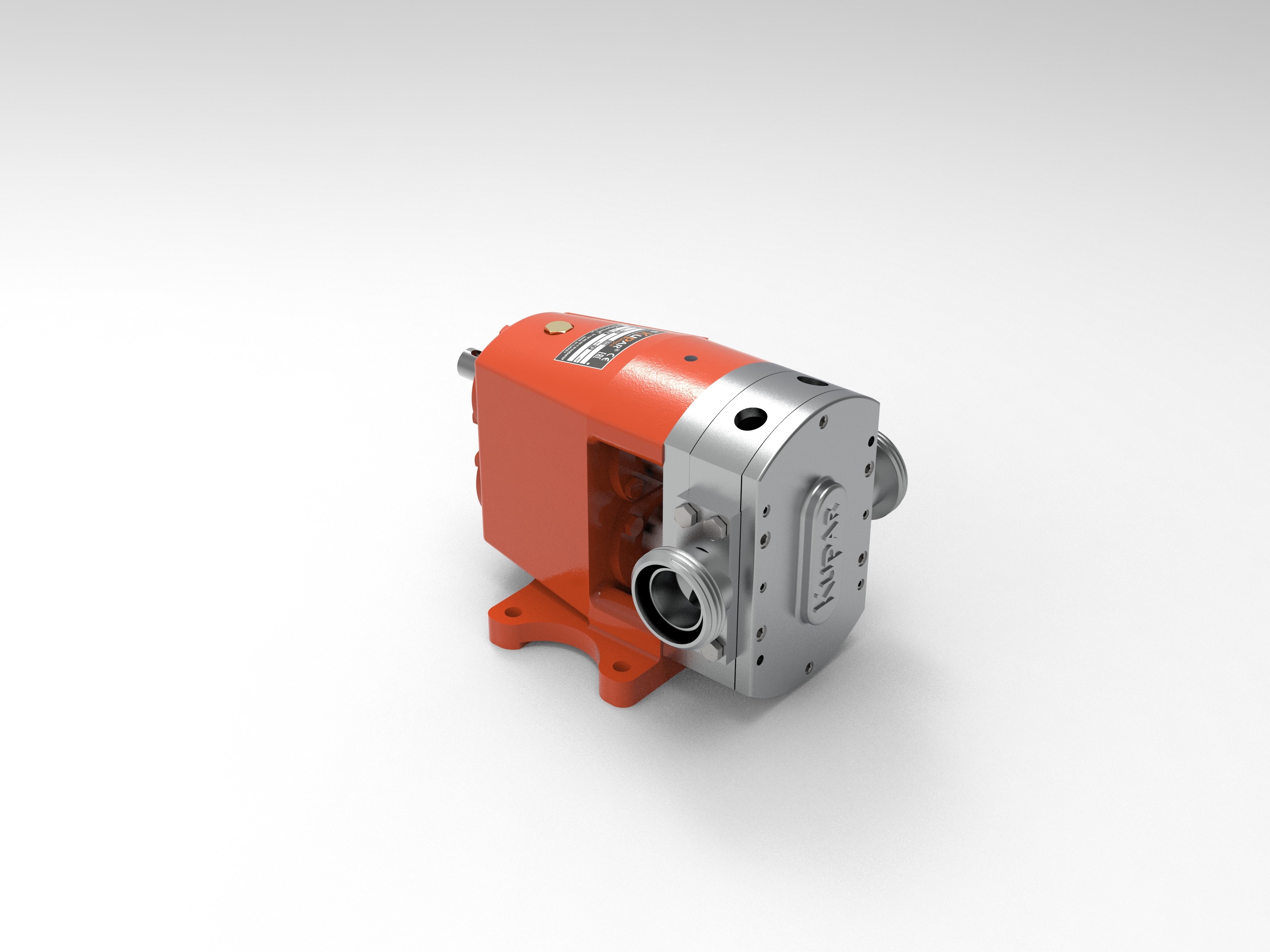

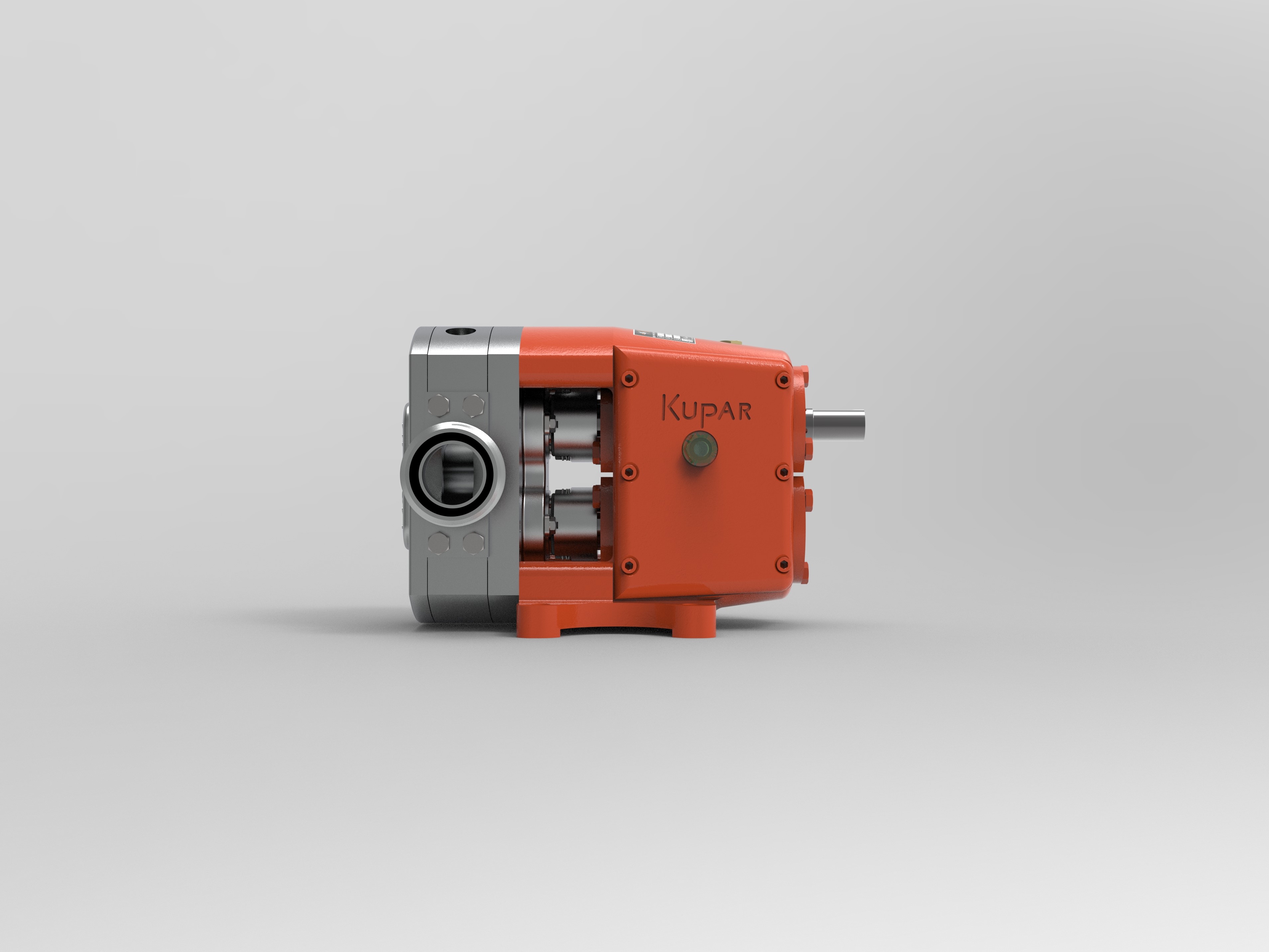

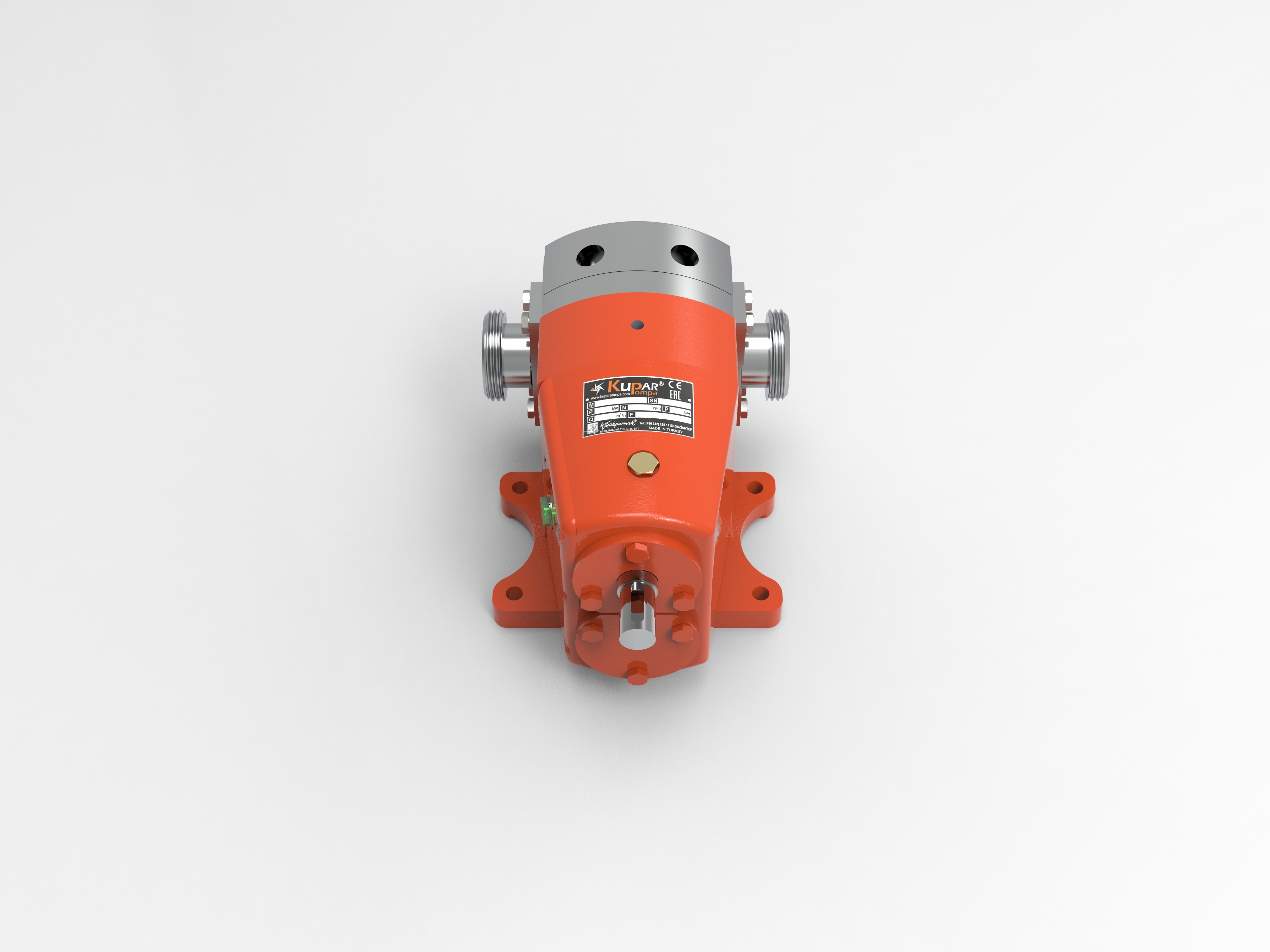

3D
-VIEW
KLP1½" Lobe Pump
TECHNICAL SPECIFICATIONS
Inlet-Outlet:
1½" 180° Flange / Union
Flow Rate:
0,125 L/rev
Maximum Flow:
3,6 m³/h
Pressure Range:
2-14 Bar
Temperature Range:
20-200°
Viscosity:
100- 25 000 Cp
Body Material:
GG25 Cast Iron / AISI316 Stainless Steel
Gear Material:
AISI316 Stainless Steel
Bushing:
Bearing
Sealing:
Packing Gland / Mechanical Sealing
Accessories:
Heating Jacket
Dimensions:
32,5 cm x 21,5 cm x 20 cm
Weight:
33,2 KG
TECHNICAL DATA
Performance Curves
Technical Drawing
