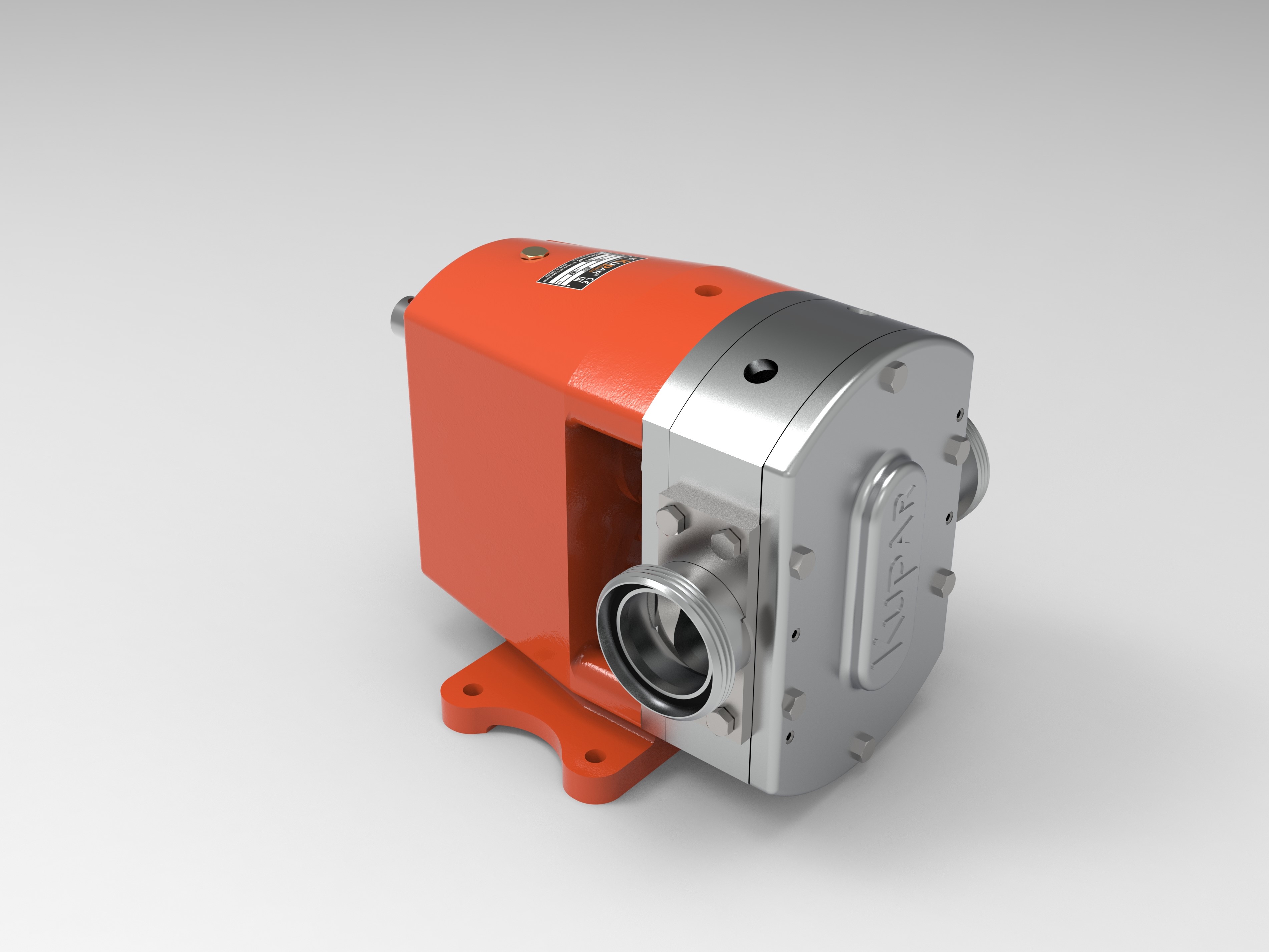

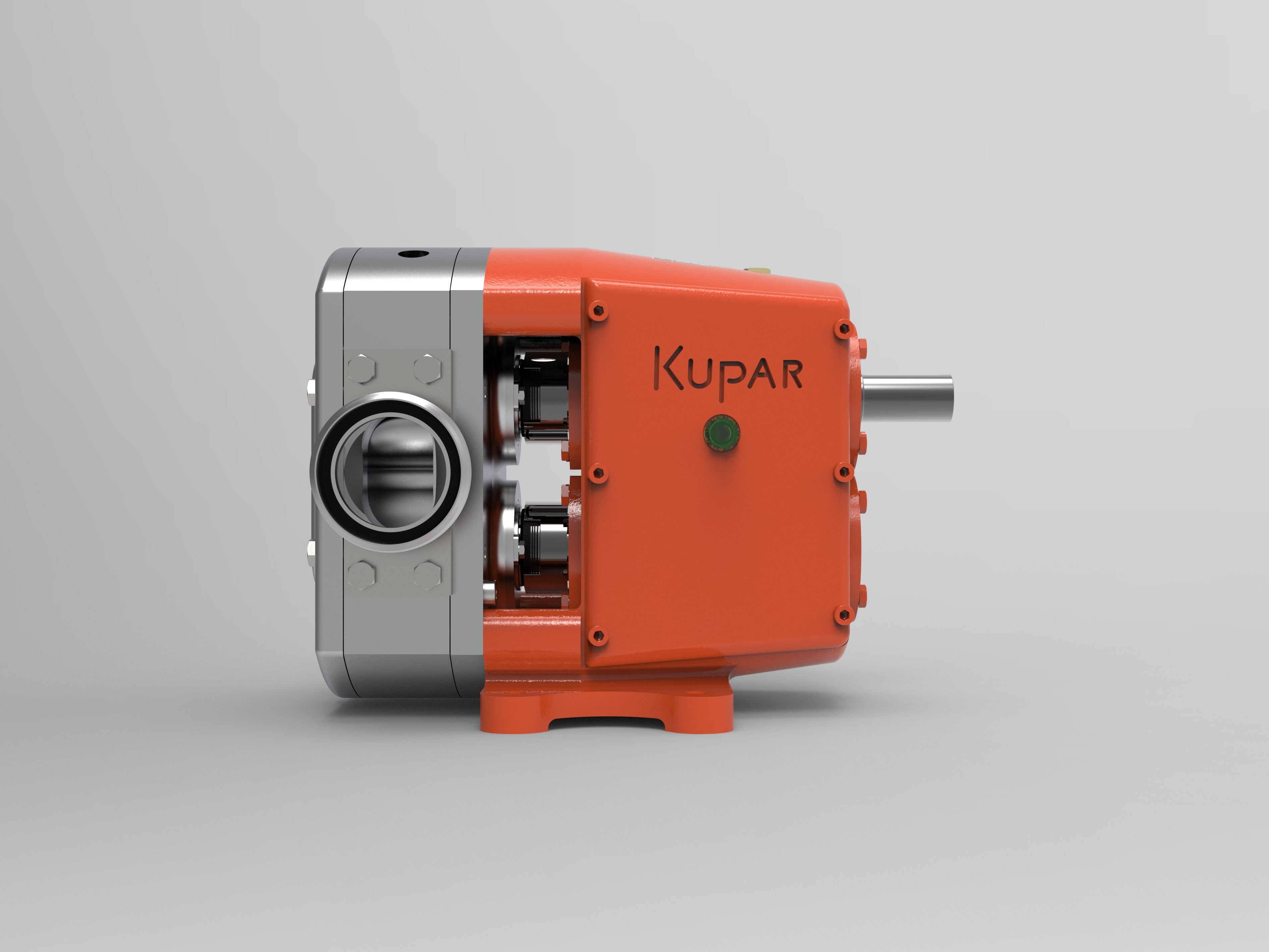

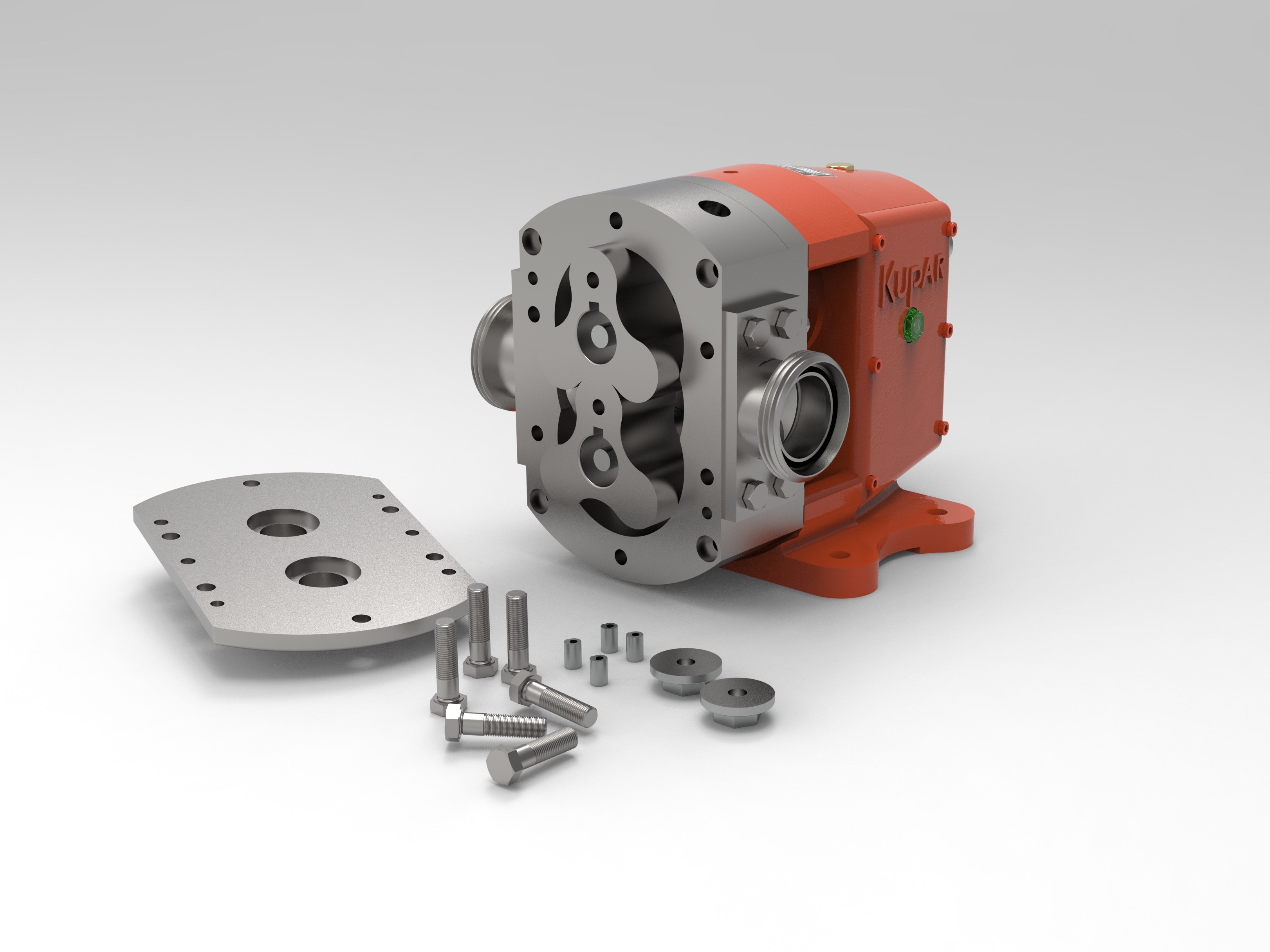

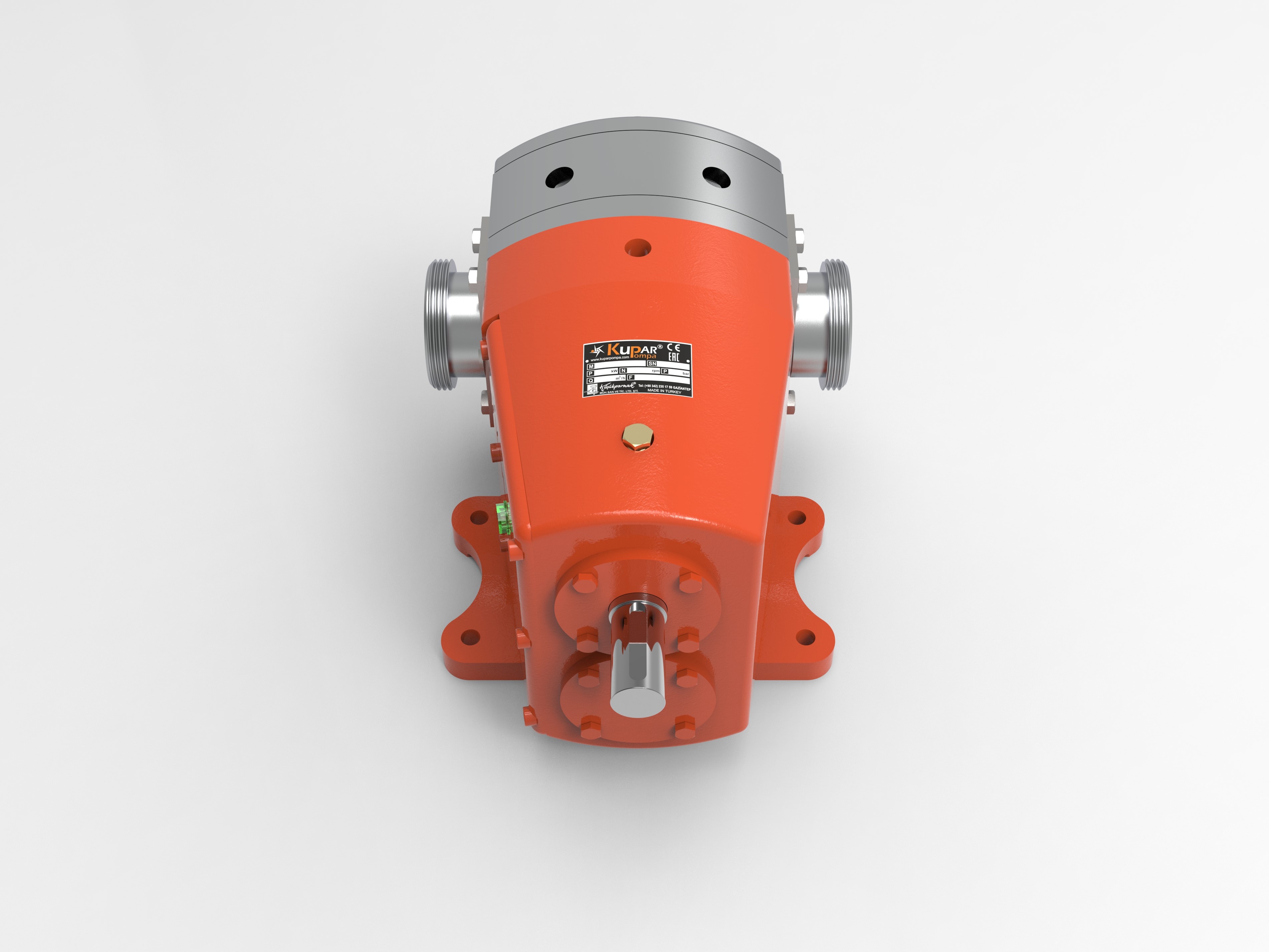

3D-VIEW



KLP2½" Lobe Pump

TECHNICAL SPECIFICATIONS
  • Inlet-Outlet: 2½" 180° Flange / Union
  • Flow Rate: 0,667 L/rev
  • Maximum Flow: 20 m³/h
  • Pressure Range: 2-14 Bar
  • Temperature Range: 20-200°
  • Viscosity: 100- 25 000 Cp
  • Body Material: GG25 Cast Iron / AISI316 Stainless Steel
  • Gear Material: AISI316 Stainless Steel
  • Bushing: Bearing
  • Sealing: Packing Gland / Mechanical Sealing
  • Accessories: Heating Jacket
  • Dimensions: 42 cm x 30 cm x 30 cm
  • Weight: 89 KG

TECHNICAL DATA
Performance Curves
Technical Drawing
