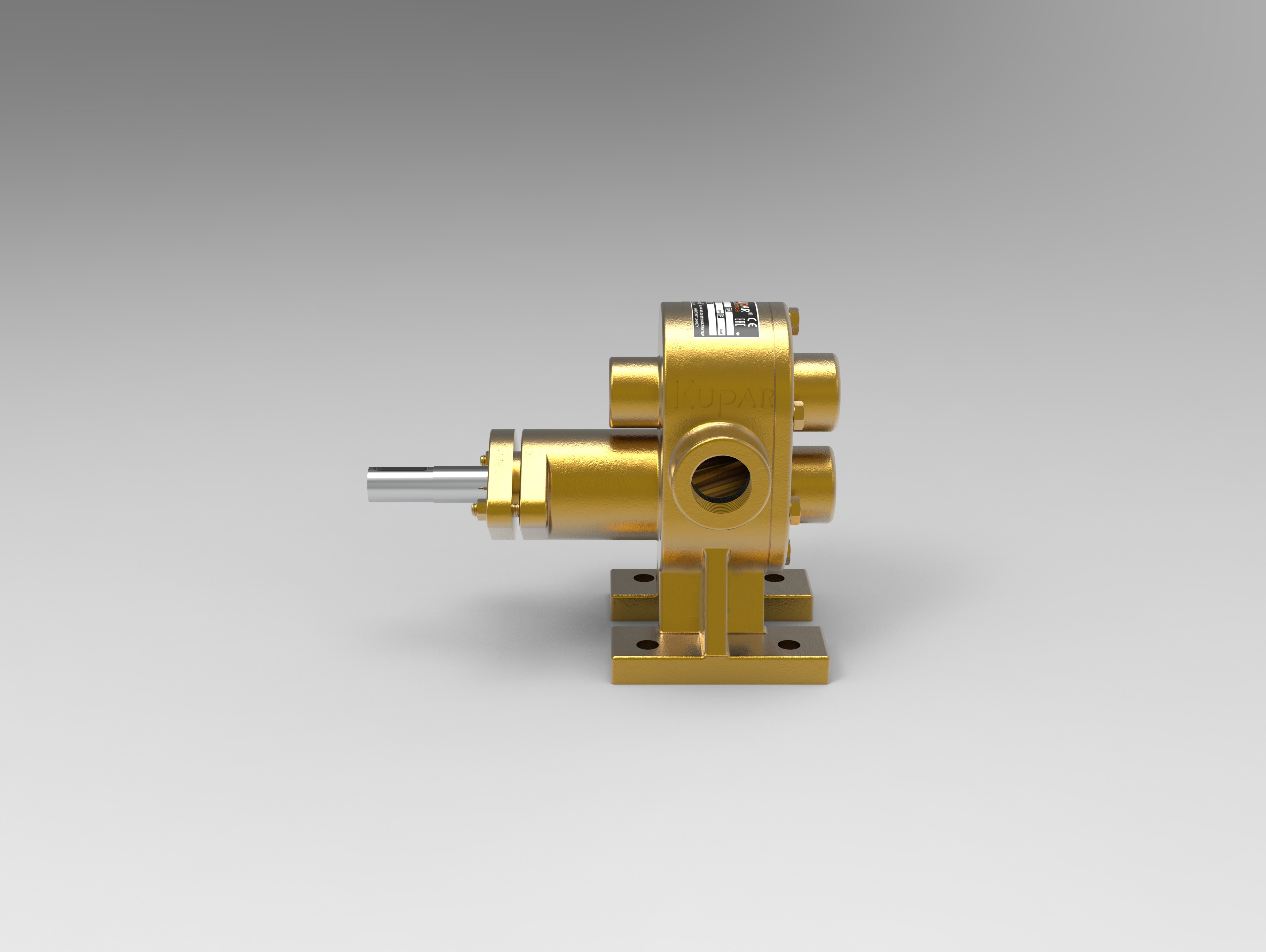

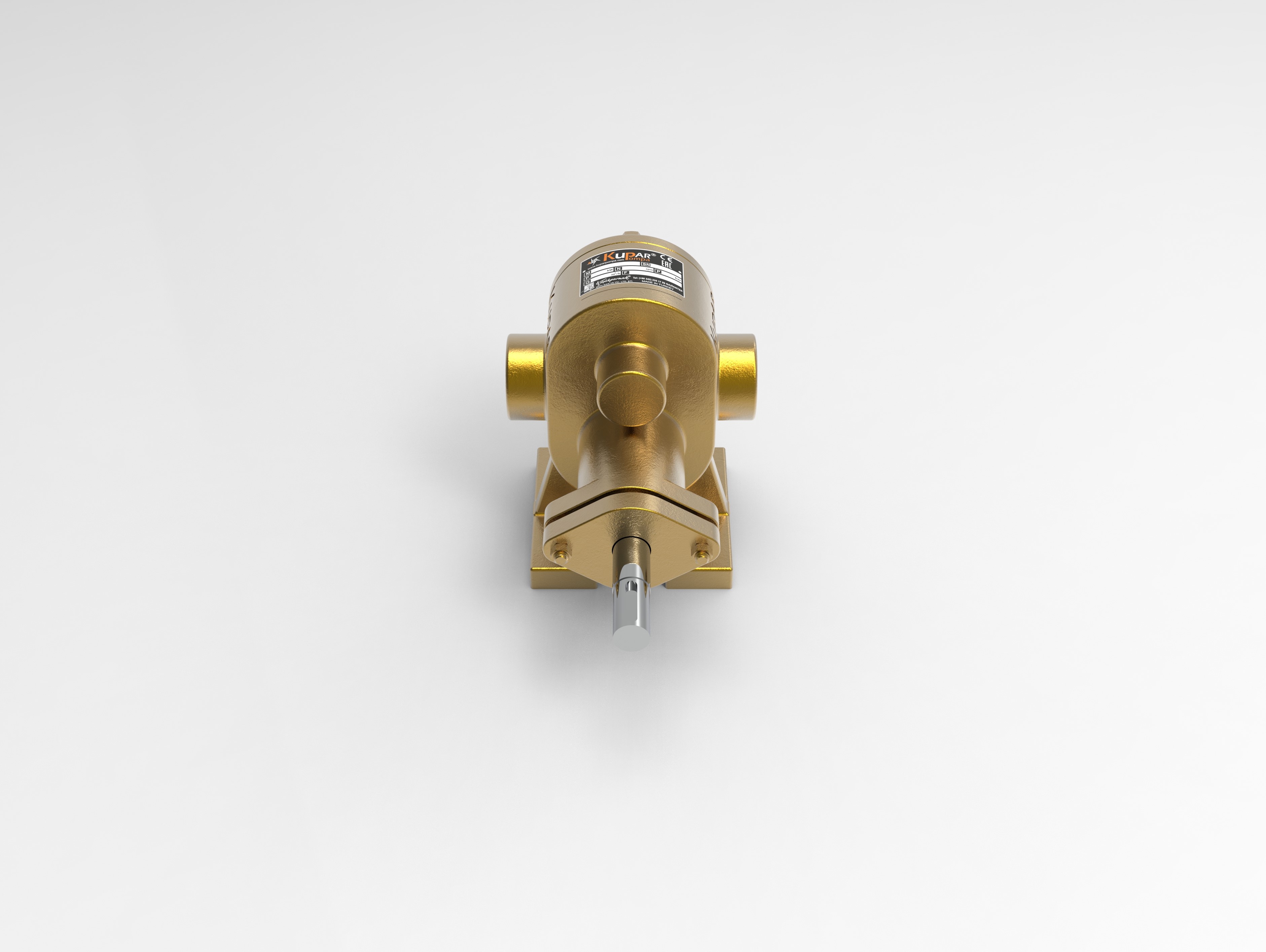

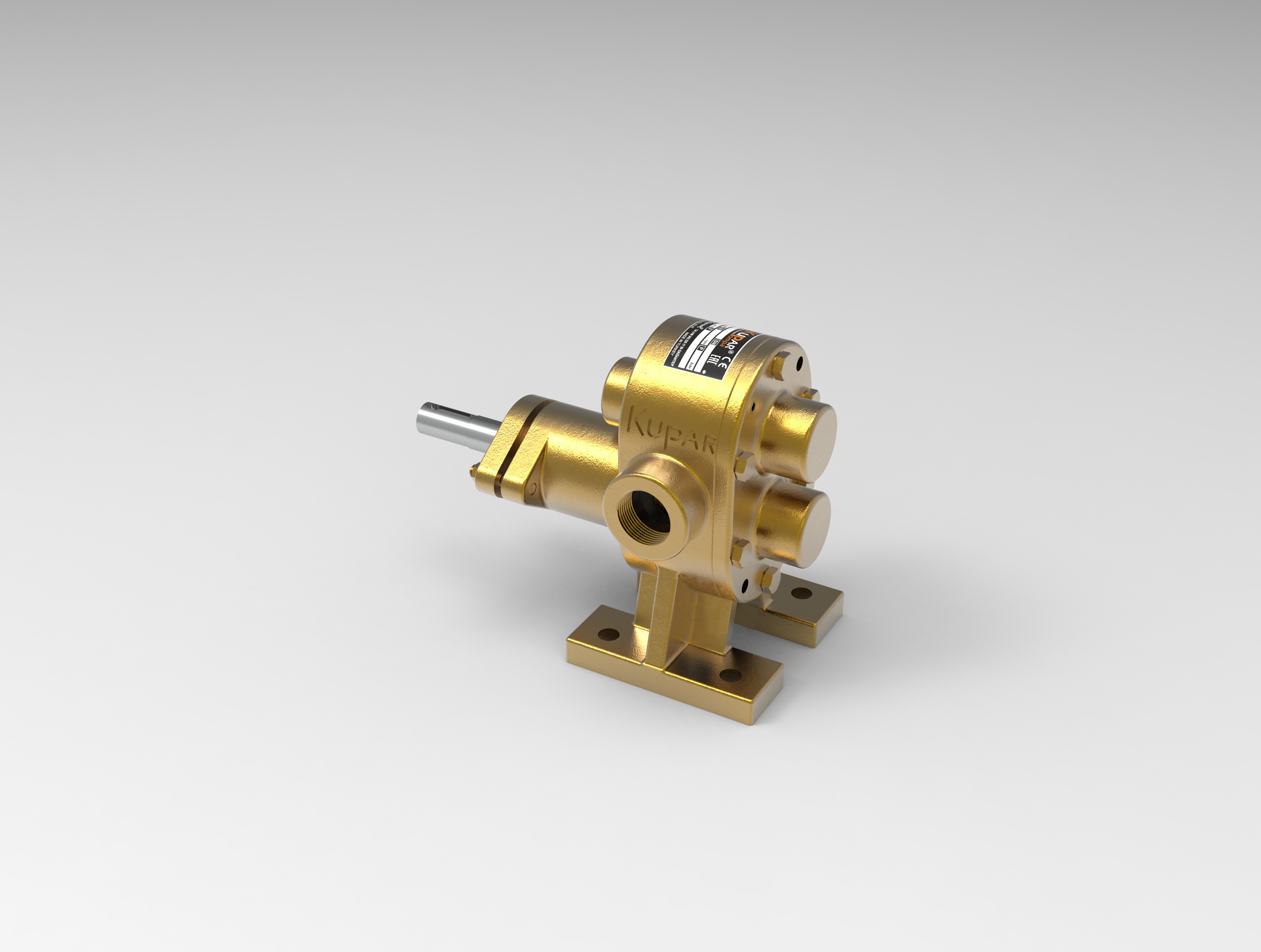

3D-VIEW



KHP1"-B
Stainless Helical Gear Pumps

TECHNICAL SPECIFICATIONS
  • Inlet-Outlet: Boru Diş 1"
  • Flow Rate: 0,058 L/rev
  • Maximum Flow: 5,2 m³/h
  • Pressure Range: 2-14 Bar
  • Temperature Range: 20-200°
  • Viscosity: 100 - 25 000 Cp
  • Body Material: Bronze
  • Gear Material: Bronze
  • Bushing: Bronze / Carbon Aided Teflon / Bearing
  • Sealing: Packing Gland / Mechanical Sealing / Lip Seal
  • Accessories: Heating Jacket / Relief Valve / Filter
  • Dimensions: 25 cm x 19 cm x 14,2 cm
  • Weight: 10,5 KG

TECHNICAL DATA
Performance Curves
Technical Drawing
