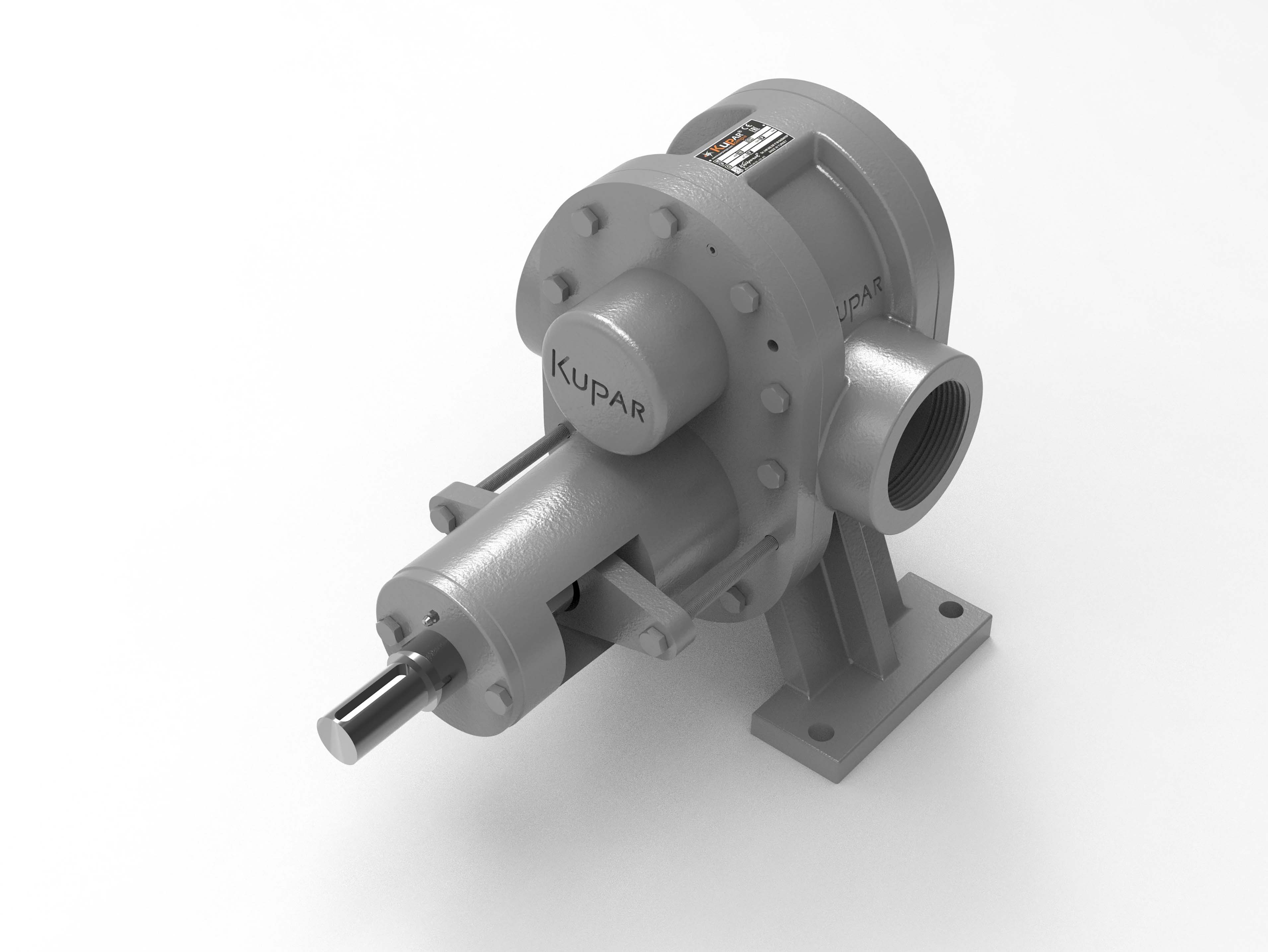

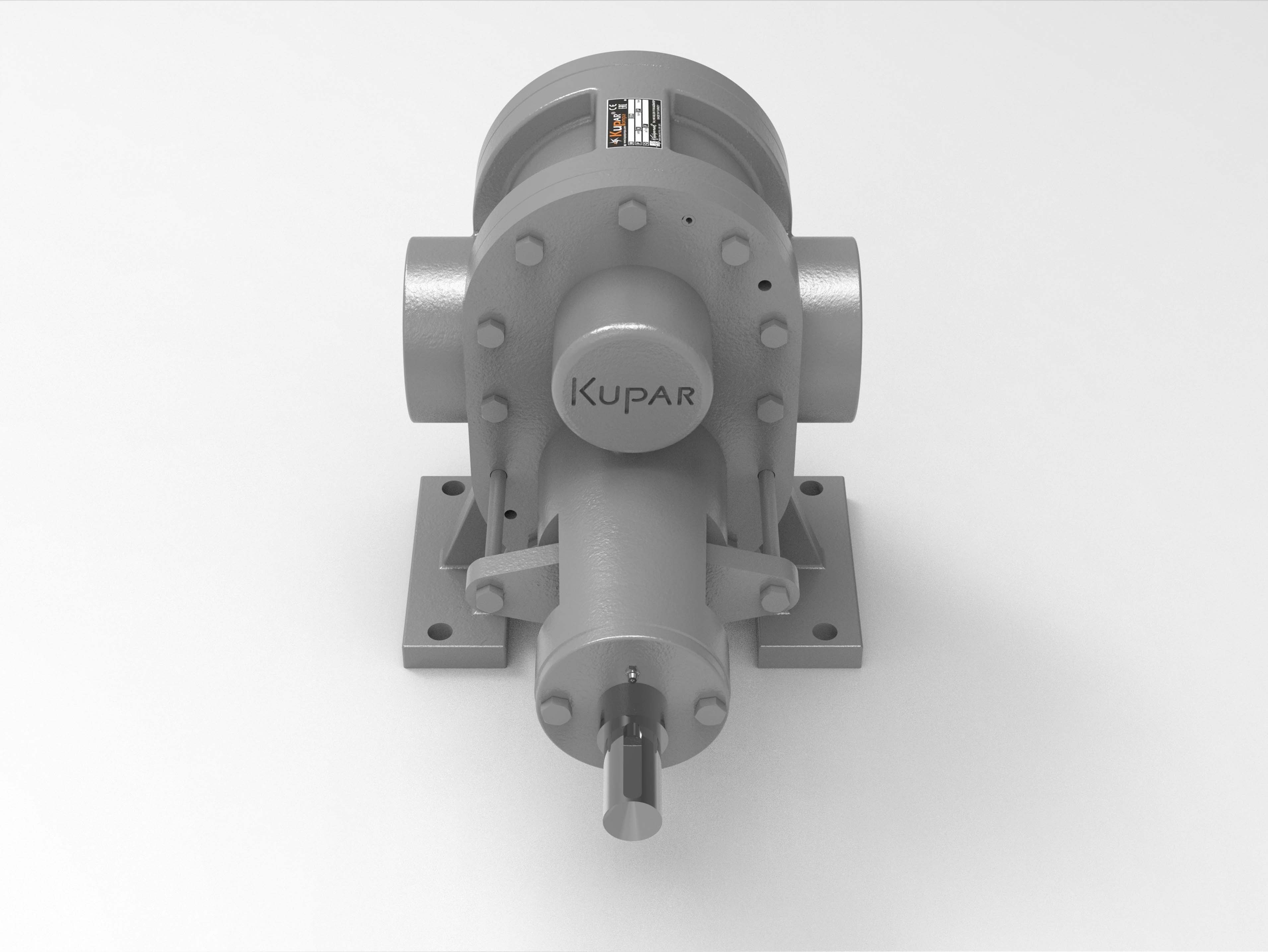

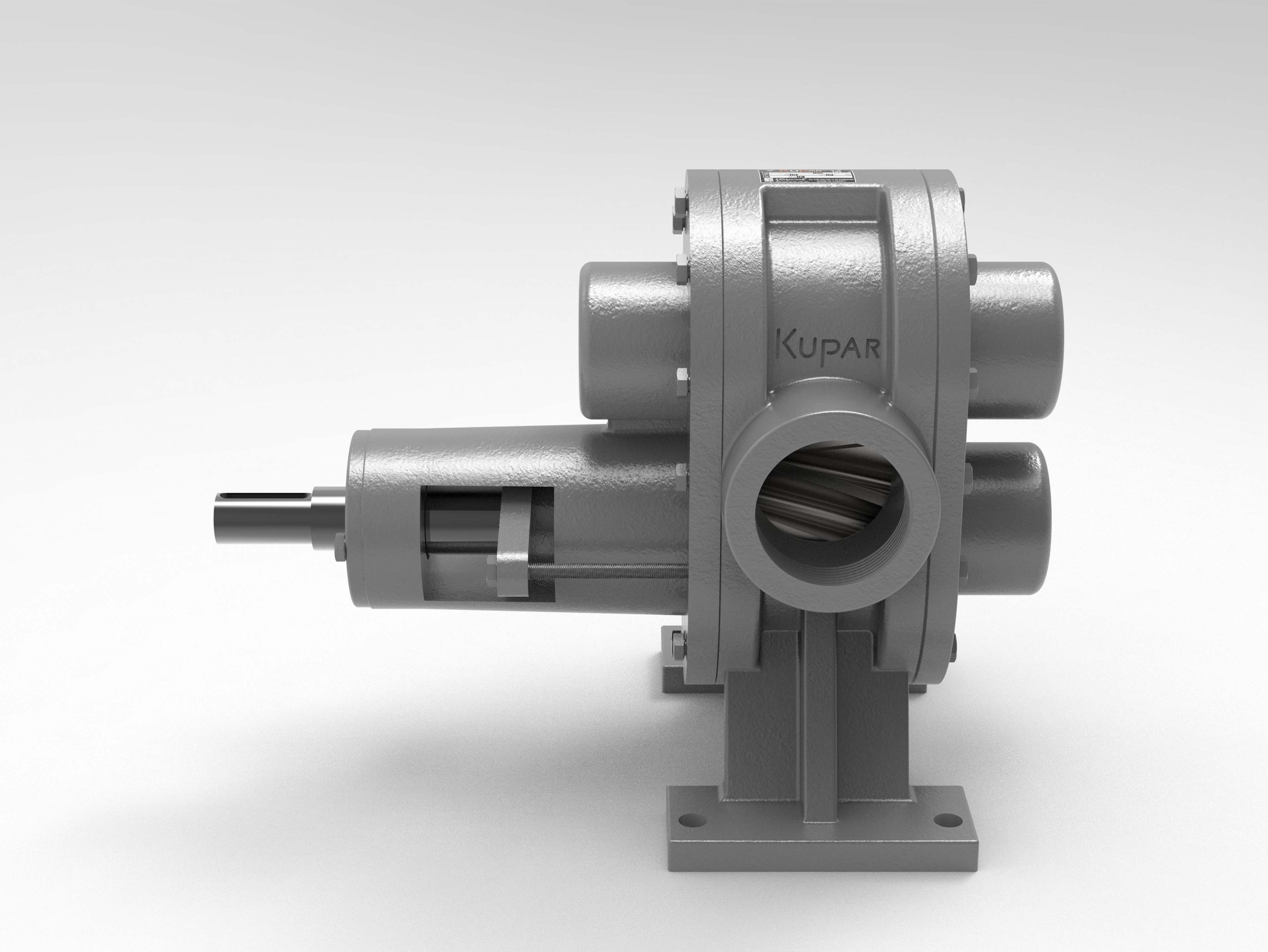

3D-VIEW



KHP3"-C
Stainless Helical Gear Pumps

TECHNICAL SPECIFICATIONS
  • Inlet-Outlet: Boru Diş 3"
  • Flow Rate: 0,833 L/rev
  • Maximum Flow: 50 m³/h
  • Pressure Range: 2-14 Bar
  • Temperature Range: 20-200°
  • Viscosity: 100 - 25 000 Cp
  • Body Material: AISI316 Stainless Steel
  • Gear Material: AISI316 Stainless Steel
  • Bushing: Bronze / Carbon Aided Teflon / Bearing
  • Sealing: Packing Gland / Mechanical Sealing / Lip Seal
  • Accessories: Heating Jacket / Relief Valve / Filter
  • Dimensions: 51 cm x 37,8 cm x 31 cm
  • Weight: 80 KG

TECHNICAL DATA
Performance Curves
Technical Drawing
