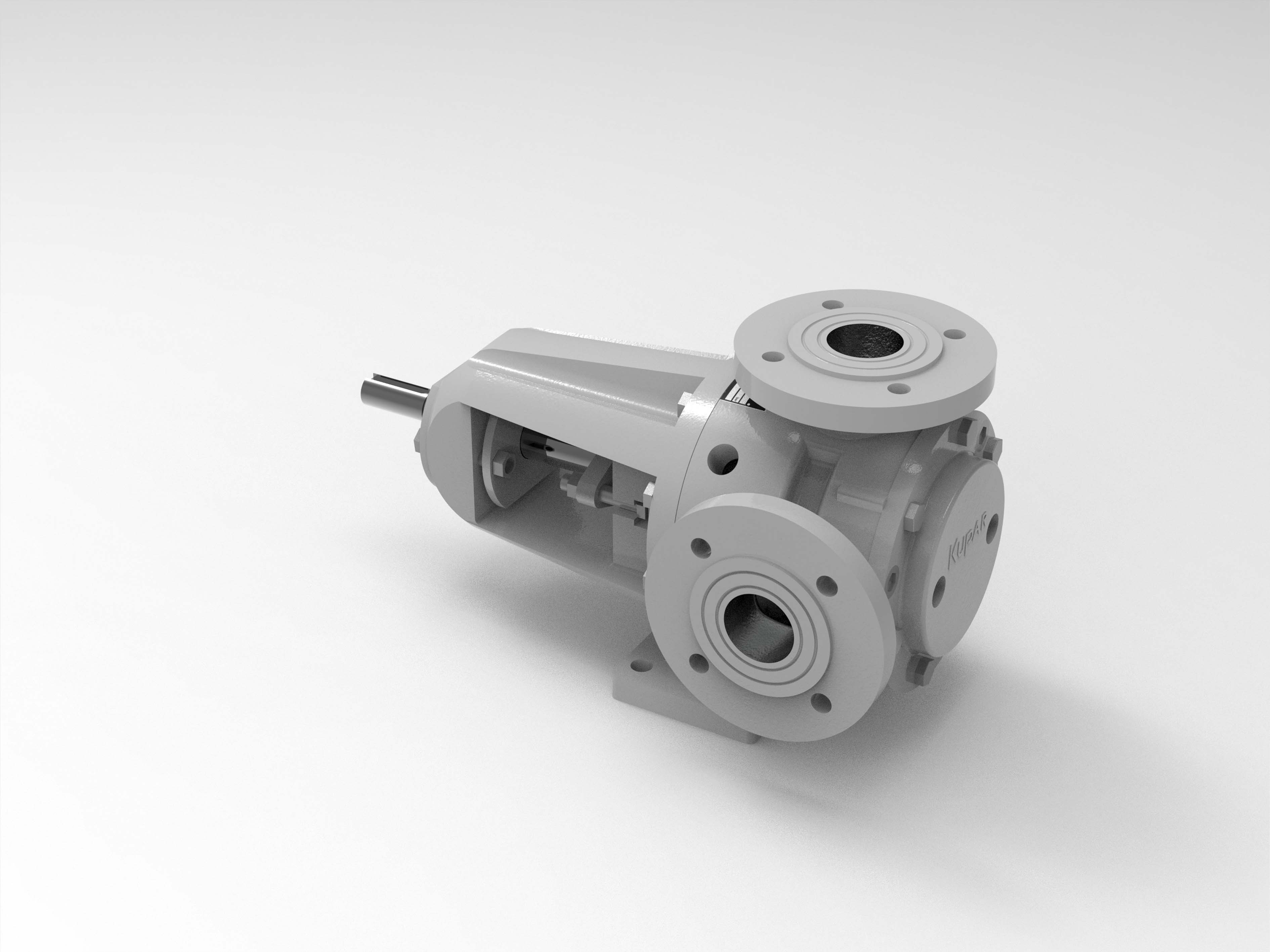

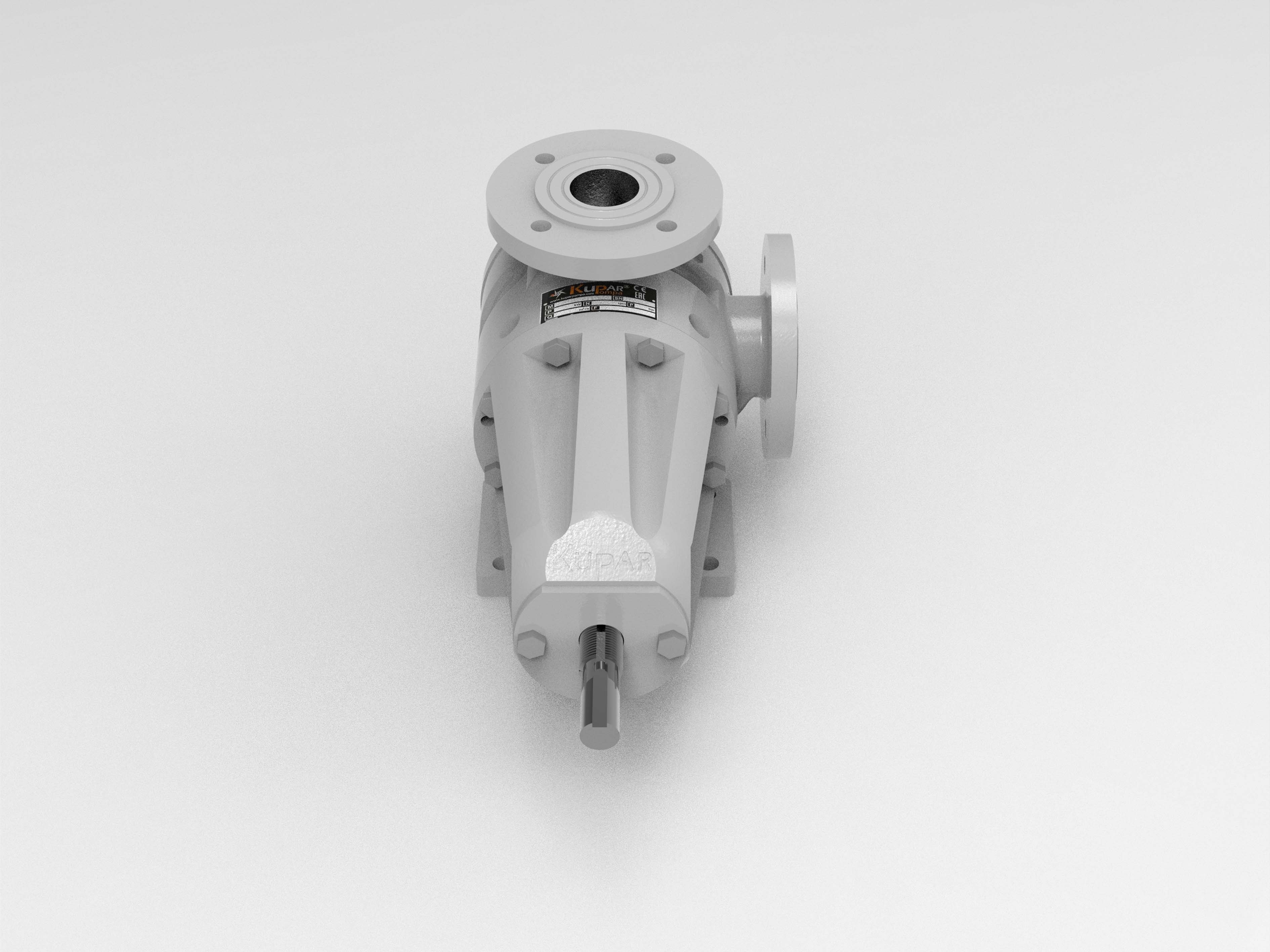

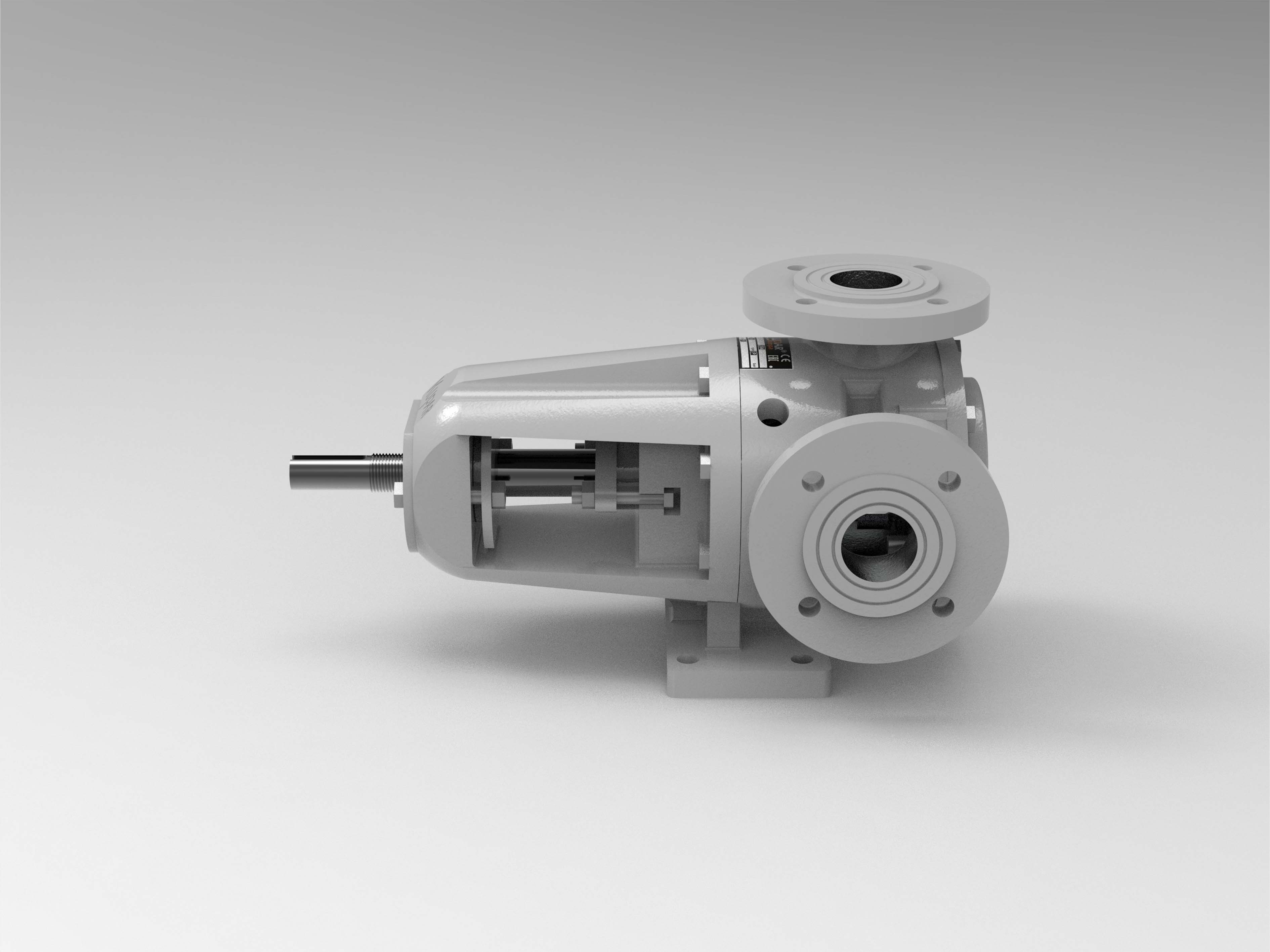

KIP1½"-C
Stainless Internal Gear Pumps

• Inlet-Outlet: 1½" 90° Flange / Boru Diş
• Flow Rate: 0,123 L/rev
• Maximum Flow: 3,5 m³/h
• Pressure Range: 1-14 Bar
• Temperature Range: 20-180°
• Viscosity: 100 - 25 000 Cp
• Body Material: AISI316 Stainless Steel
• Gear Material: AISI316 Stainless Steel
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket, Relief Valve, Filter
• Dimensions: 43 cm x 24 cm x 17 cm
• Weight: 16 KG

Performance Curves
Technical Drawing
