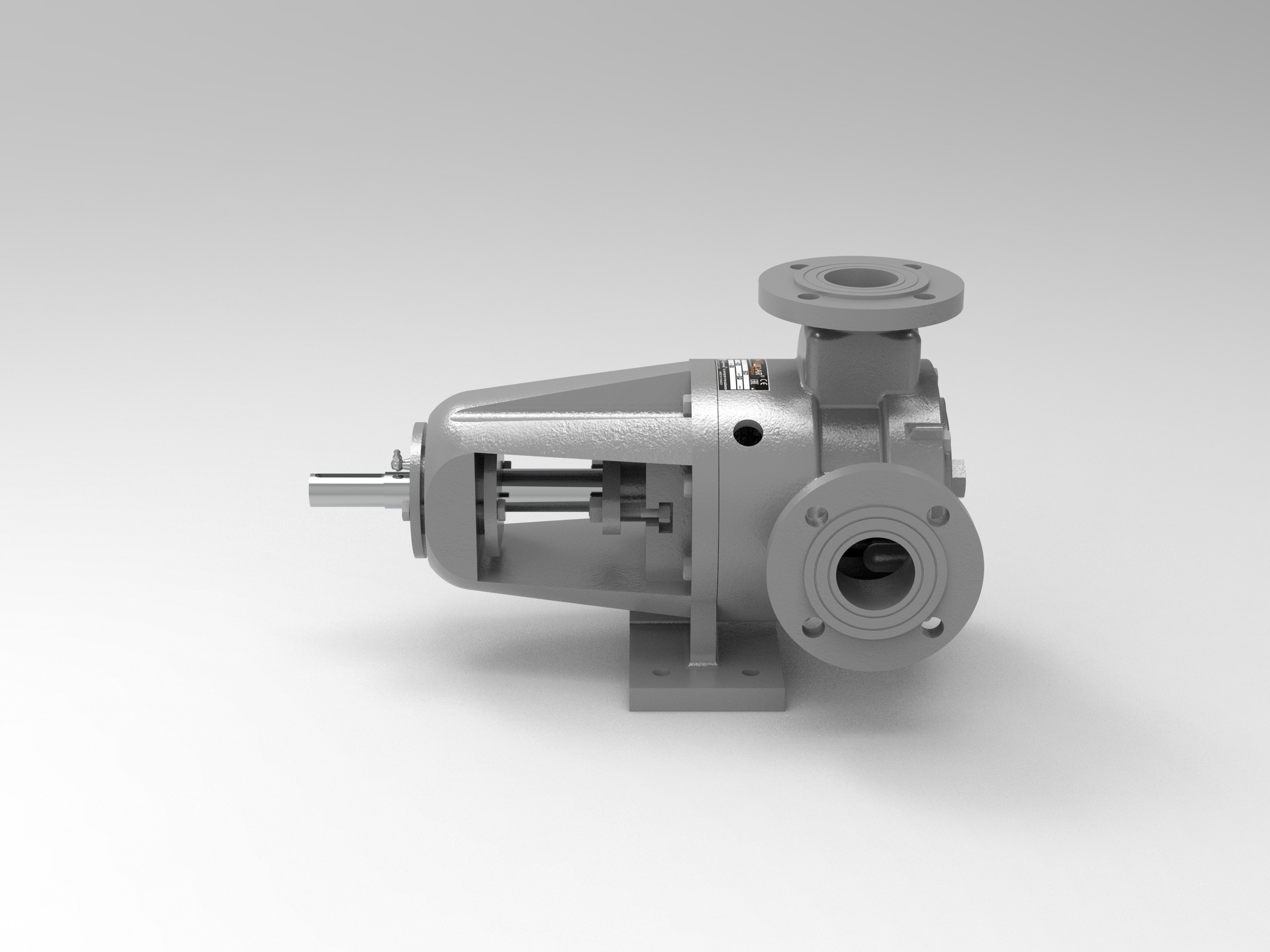

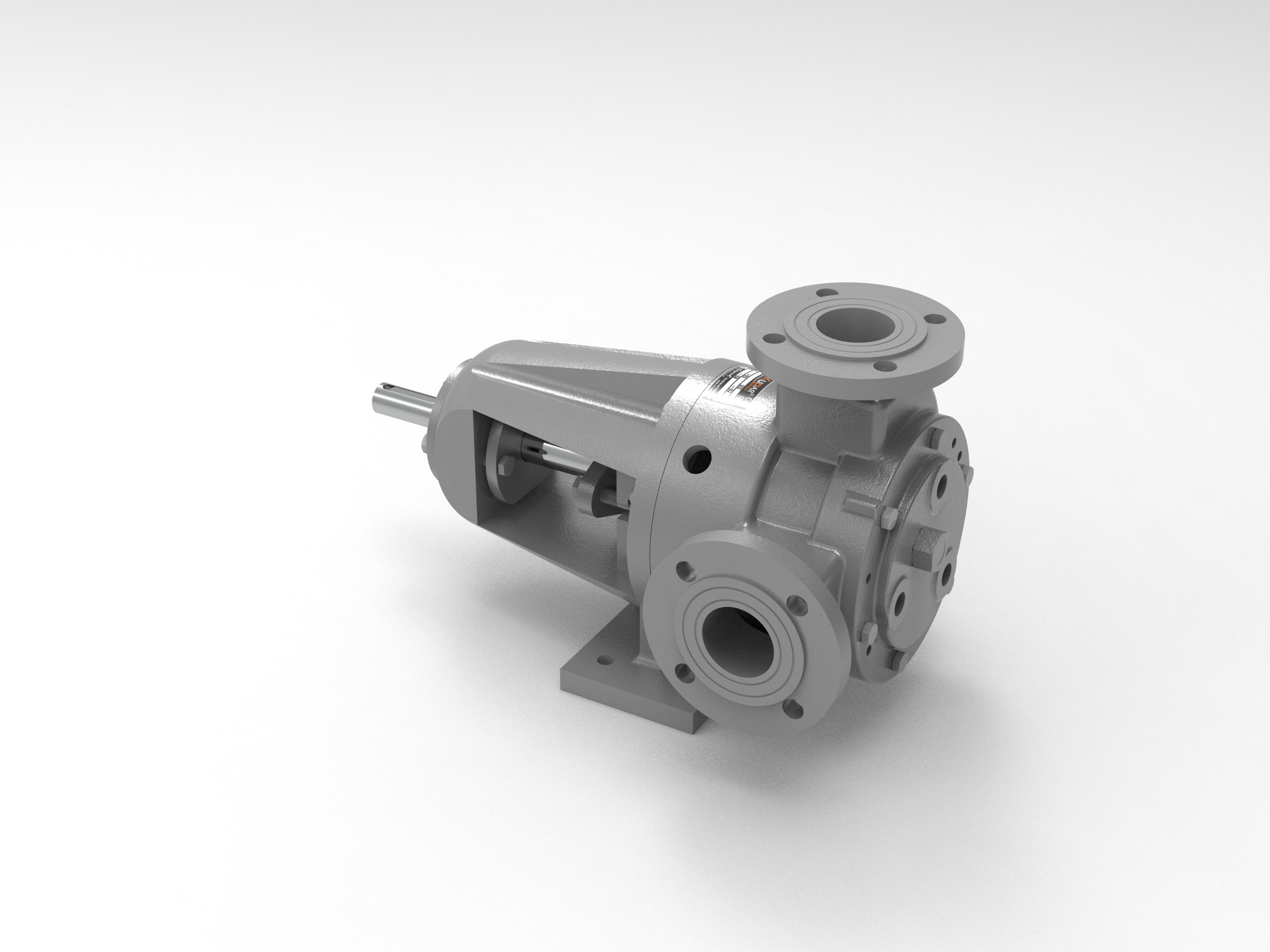

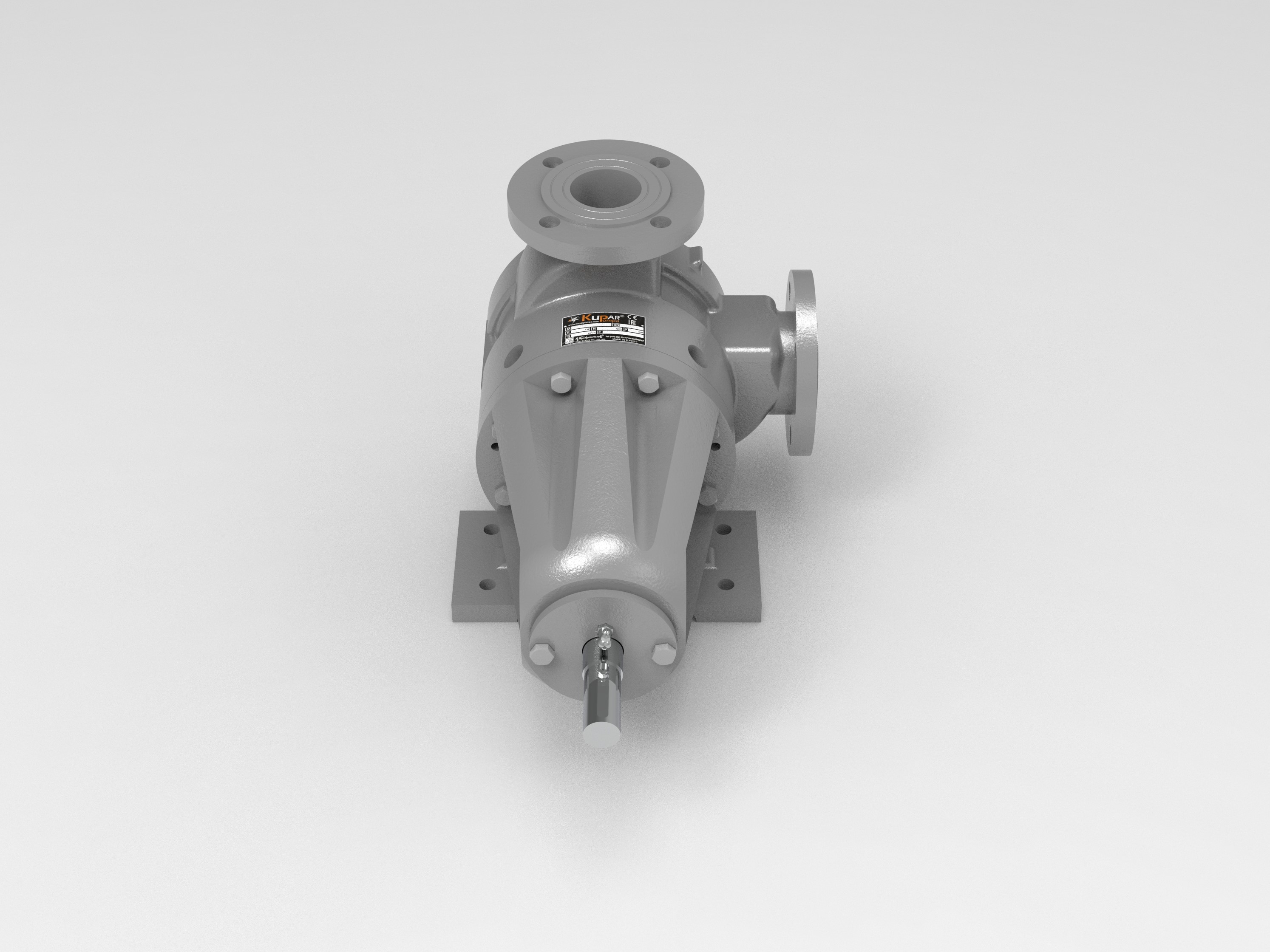

KIP2"-C
Stainless Internal Gear Pumps

• Inlet-Outlet: 2" 90° Flange / Boru Diş
• Flow Rate: 0,491 L/rev
• Maximum Flow: 14 m³/h
• Pressure Range: 2-14 Bar
• Temperature Range: 20-200°
• Viscosity: 100 - 25 000 Cp
• Body Material: AISI316 Stainless Steel
• Gear Material: AISI316 Stainless Steel
• Bushing: Bronze / Carbon Aided Teflon / Bearing
• Sealing: Packing Gland / Mechanical Sealing
• Accessories: Heating Jacket, Relief Valve, Filter
• Dimensions: 52 cm x 31,2 cm x 30,6 cm
• Weight: 60 KG

Performance Curves
Technical Drawing
