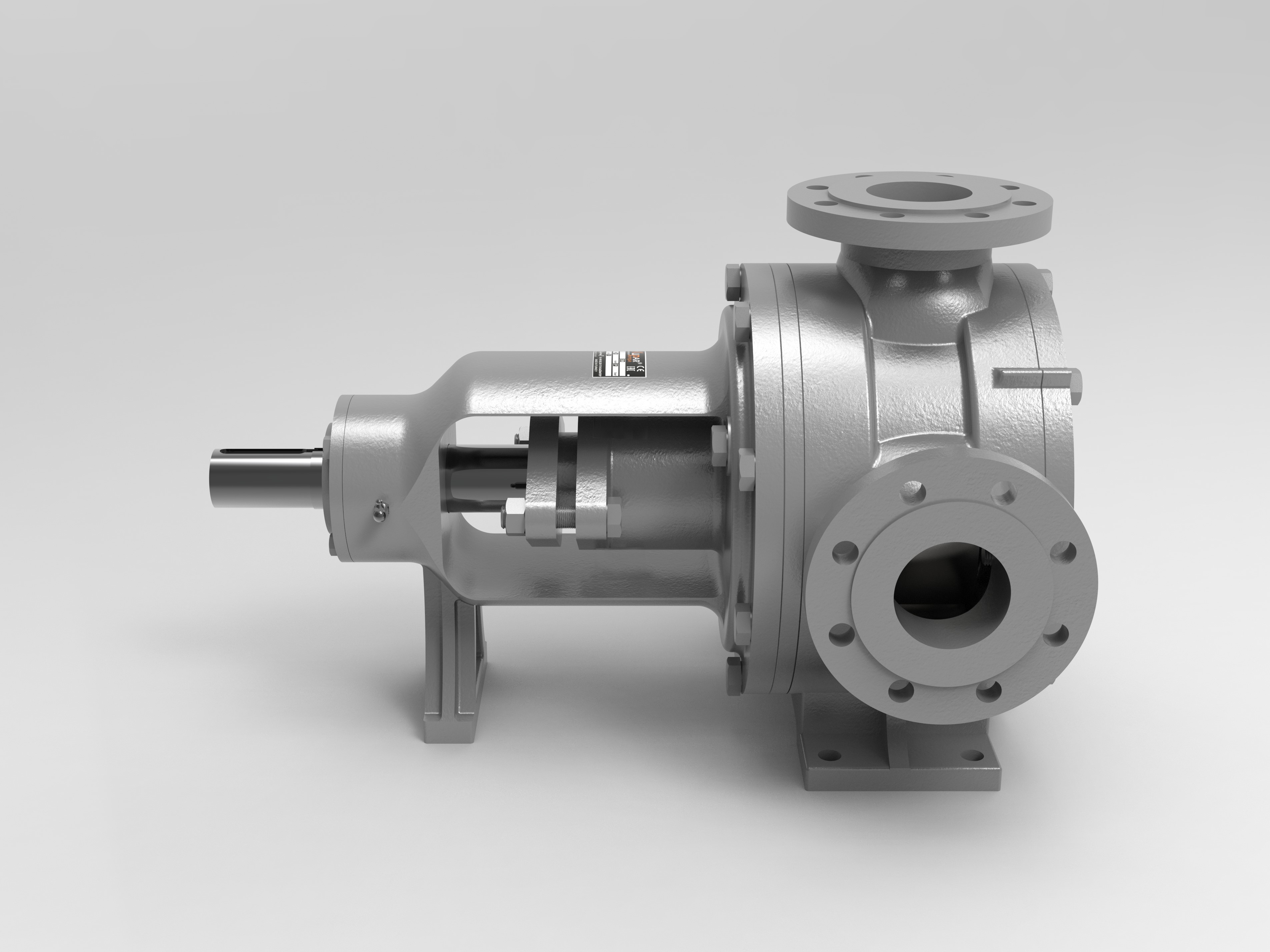

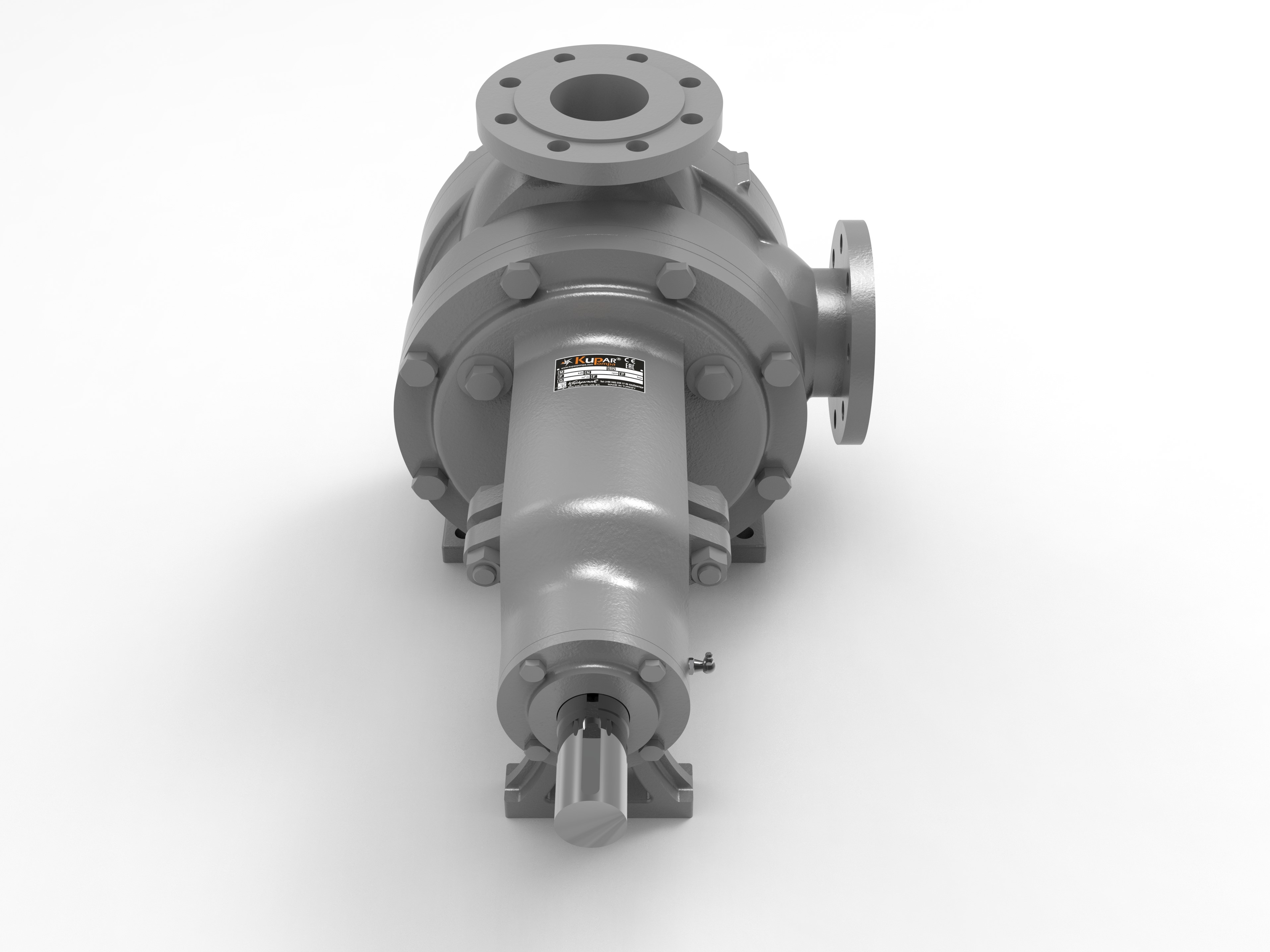

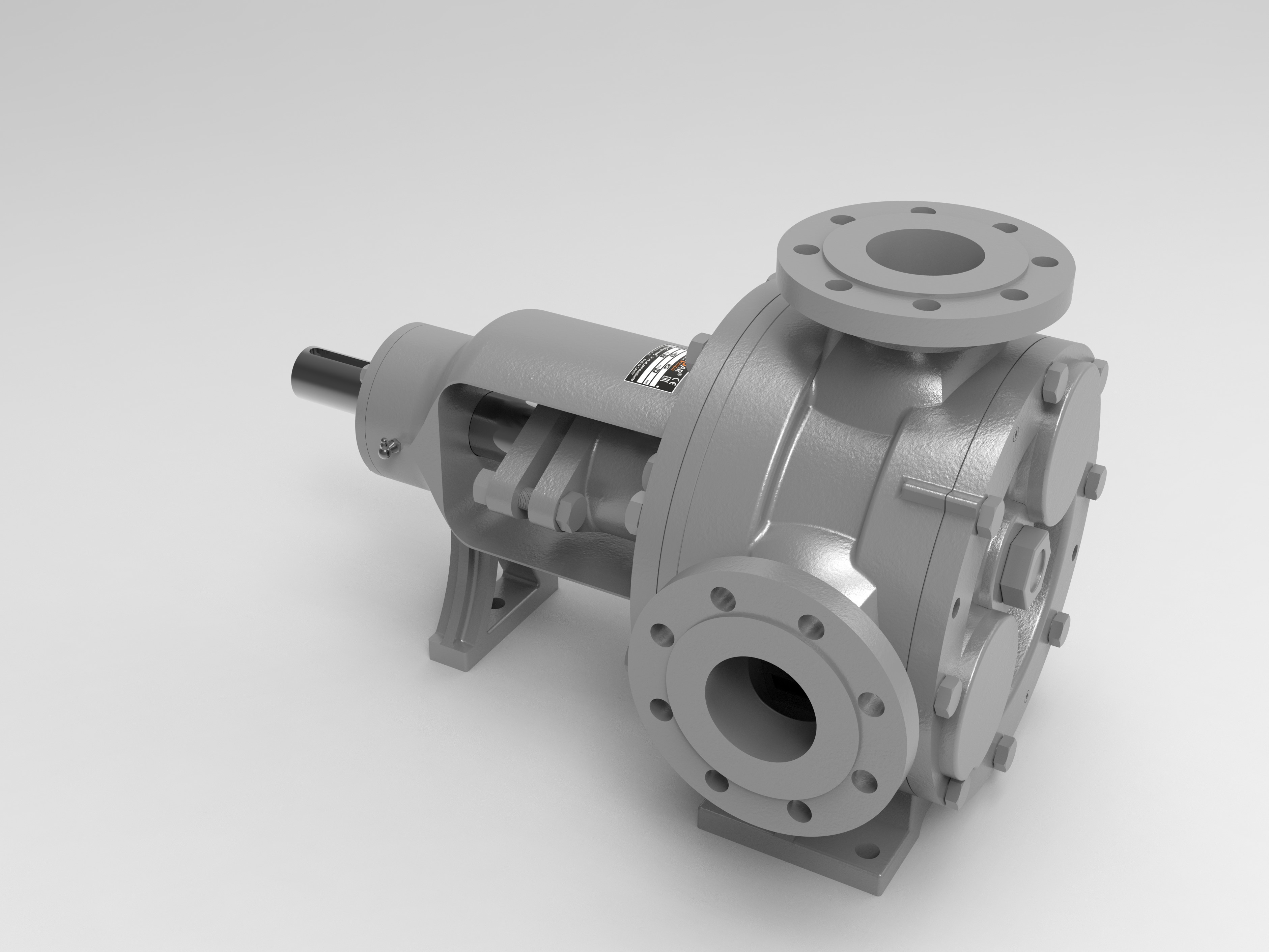

3D-VIEW



KIP3"-C
Stainless Internal Gear Pumps

TECHNICAL SPECIFICATIONS
  • Inlet-Outlet: 3" 90° Flange / Boru Diş
  • Flow Rate: 2,222 L/rev
  • Maximum Flow: 60 m³/h
  • Pressure Range: 2-14 Bar
  • Temperature Range: 20-200°
  • Viscosity: 100 - 25 000 Cp
  • Body Material: GG25 Cast Iron / AISI316 Stainless Steel
  • Gear Material: GG25 Cast Iron / AISI316 Stainless Steel
  • Bushing: Bronze / Carbon Aided Teflon / Bearing
  • Sealing: Packing Gland / Mechanical Sealing
  • Accessories: Heating Jacket, Relief Valve, Filter
  • Dimensions: 66 cm x 43,5 cm x 40,5 cm
  • Weight: 160 KG

TECHNICAL DATA
Performance Curves
Technical Drawing
